Bmi 35128 Malleable Iron Bushing 1x1/2 Inch Black

Product Description

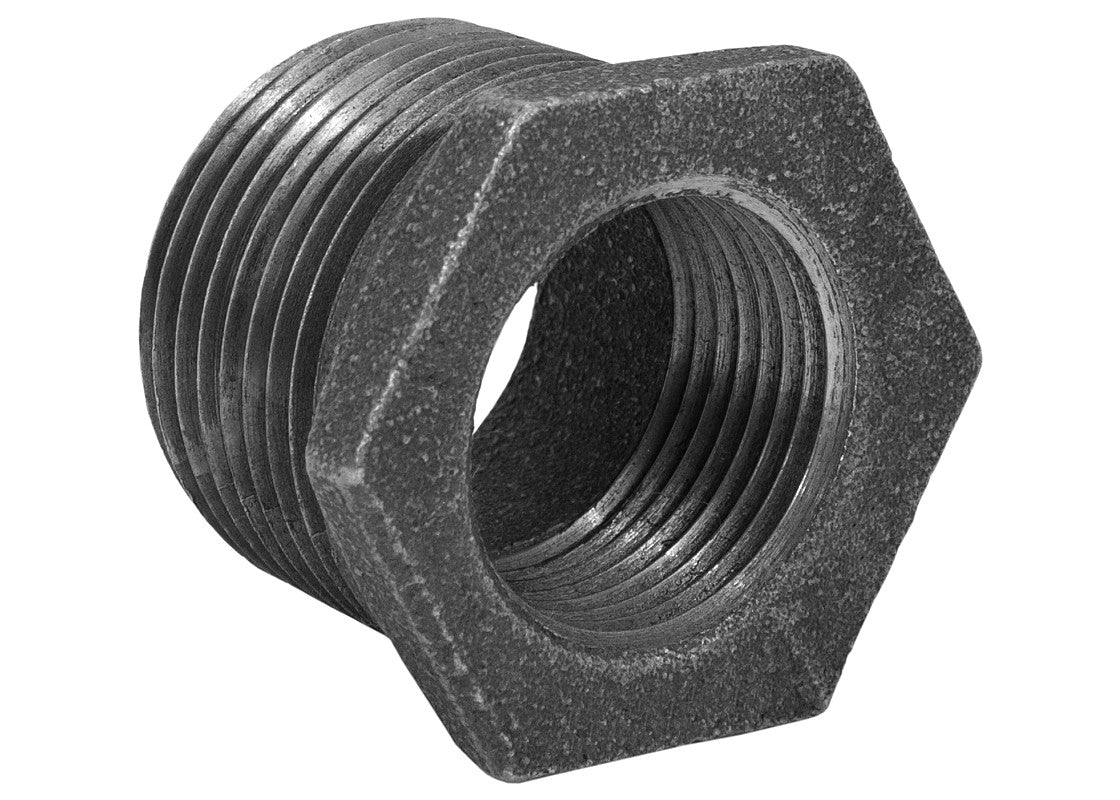

The BMI 35128 is a black malleable iron pipe bushing designed to reduce a 1-inch female threaded fitting down to a 1/2-inch male threaded connection. Malleable iron construction provides the durability and thread integrity required for gas, air, and general-purpose piping systems. The black finish is standard for gas line applications and indicates an ungalvanized iron fitting. Licensed plumbers and pipefitters install this bushing during rough-in and retrofit work where reducing fittings are needed to transition between pipe sizes within a threaded system.

This bushing is suited for residential and light commercial piping installations including natural gas supply lines, compressed air distribution, and water systems where malleable iron fittings are specified. It threads directly into a 1-inch female NPT fitting and accepts a 1/2-inch male NPT connection, making it a common reducing fitting in gas appliance hookups and distribution manifolds.

Key Features

• Reduces 1-inch female NPT to 1/2-inch male NPT in a single fitting
• Malleable iron construction for strength and thread reliability in threaded piping systems
• Black ungalvanized finish suitable for natural gas and propane service
• Compact form factor fitting within standard piping assemblies
• Compatible with standard NPT pipe thread systems

Compatibility

Designed as a standard NPT reducing bushing for use in malleable iron threaded piping systems. Fits any 1-inch female NPT fitting accepting a hex bushing with a 1/2-inch male NPT outlet.

Installation Notes

Installation is performed by licensed plumbers or pipefitters in accordance with applicable local codes and IFGC requirements for gas piping. Apply an approved thread sealant or PTFE tape rated for the intended service medium before threading the bushing into place. Shut off the gas or fluid supply and depressurize the line before making any connections. Do not overtighten threaded fittings, as malleable iron threads can be damaged by excessive torque.

Technical Specifications

• Material: Malleable Iron
• Finish: Black
• Inlet Size: 1 inch female NPT
• Outlet Size: 1/2 inch male NPT
• Weight: 0.101 pounds

Standard Information

• Brand: BMI
• Manufacturer Part Number: 35128
