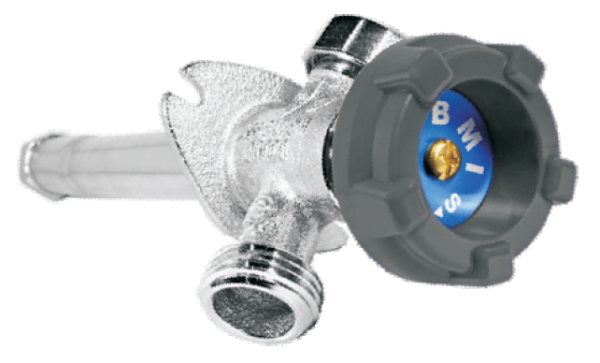

Bmi 27820 1/2 x 10 Wall Hydrant Non-Freeze With Vacuum Cold Expansion Connection

Product Description

The BMI 27820 is an Ultra-Frost Free Wall Faucet with a Vacuum Breaker, designed for cold expansion connections. This 1/2 x 10 inch nominal faucet operates at 125 psi and a temperature range of 32 to 140 degrees F. It features a durable brass stem and an aluminum handle, with a chrome-plated finish for enhanced longevity and appearance. Ideal for non-potable water applications requiring frost protection.

• CSA Certified
• Ultra type with spring loaded stop mechanism
• Integrated sloping flange ensures proper drainage

Product Highlights

Ultra-frost free design with vacuum breaker for reliable outdoor water access.

Product Information

Standard Information

• Brand: BMI
• Manufacturer Part Number: 27820

Technical Specifications

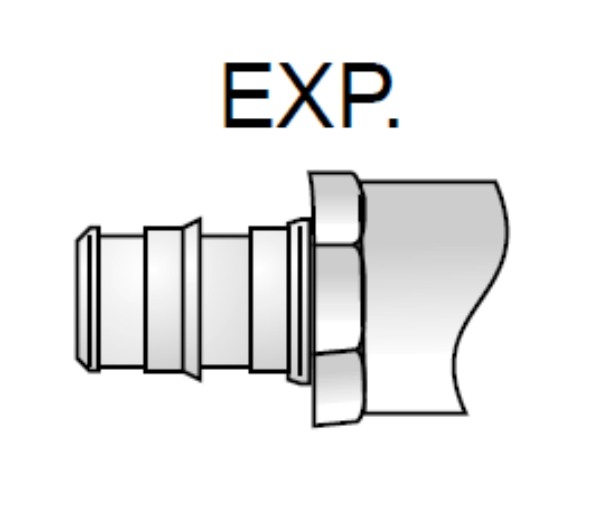

• Connection Type: Cold Expansion
• Finish: Chrome-Plated
• Handle Material: Aluminum
• Nominal Size: 1/2 x 10 in
• Pressure Rating: 125 psi
• Stem Material: Brass
• Operating Temperature: 32 to 140 deg F
• Actuator Type: Handle
• Body Material: Brass
• End Style: Cold Expansion x MNPT
• Media: Water
• Trim Material: Brass/NBR
• Type: Ultra Frost-Free
• Maximum Water Temperature: 180 F (82 C)
• Certifications: UPC, cUPC, ASSE, CSA
