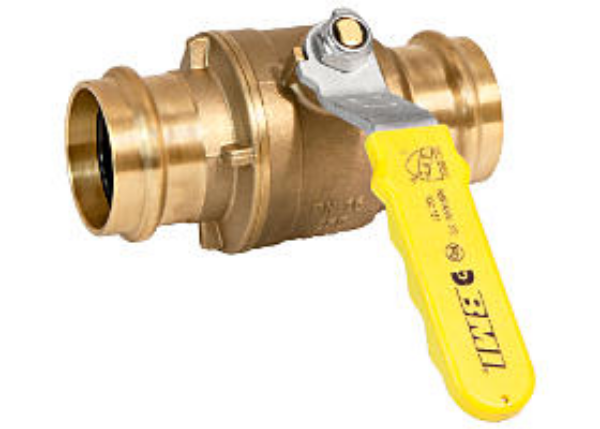

Bmi 13522 brass press-fit ball valve 250wog 4 inches

Product Description

The BMI 13522 Brass Press-Fit Ball Valve is a lead-free, DZR forged brass valve designed for various applications including potable water, hydronic heating, chilled water, compressed air (200 psi max), non-medical gases (140 psi max), and low pressure steam (15 psi max). It features a press-fit connection for efficient installation, saving time and money over traditional soldered methods. Compatible with major press tools, this 4-inch valve ensures full port flow and high corrosion resistance.

• Lead-Free, DZR, Forged Brass, Press-Fit Connection Ball Valves
• Saves time and money over traditional soldered connections
• Leak Detection Design for fast identification of unpressed connections

Product Highlights

Lead-free brass construction with press-fit connection and leak detection for reliable, efficient plumbing installations.

Product Information

Standard Information

• Brand: BMI
• Manufacturer Part Number: 13522
• Country of Origin: USA

Technical Specifications

• Pressure Rating: 250 psi Max (250 CWP)
• Working Temperature: -20 F to 300 F (-29 C to 149 C)
• Compliance: NSF/ANSI Standard 61 and 372-2010, IAPMO PS117, ICG-157
• Size: 4 inch
• Material: DZR Forged Brass
• Connection Type: Press-Fit
• Ball Material: Stainless Steel
• Stem Assembly: Blow-out proof with o-ring and adjustable packing nut
• Flow Type: Full Port
• Handle: High corrosion resistance chrome plated
• Applications: Potable Water, Hydronic Heating (w/Glycol), Chilled Water, Compressed Air (200 psi max.), Non-Medical Gases (140 psi maximum), Low Pressure Steam (15 psi maximum)
• Tubing Compatibility: ASME/ASTM B88 standard K, L and M hard copper tubing (½" to 4"), soft copper tubing (½" to 1¼")
• Lead-Free: Yes
