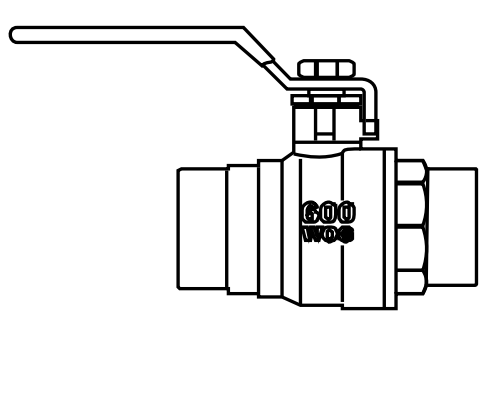

Bmi 13209 Lead-free Ball Valve 2 Inches 600 Wog

Product Description

The BMI 13209 is a 2-inch lead-free full-port ball valve rated for 600 WOG (water, oil, gas) service. It features a standard CC (compression connection) end configuration and carries CUPC and cUL listings, making it suitable for potable water systems where lead-free compliance is required. The compact quarter-turn design allows fast shut-off and is well-suited for commercial and residential plumbing installations. At 1.72 pounds, it is a solid, properly sized valve for inline isolation duty across a range of piping applications. Licensed plumbers and mechanical contractors are the primary installers of this valve.

This valve is intended for use in potable water supply lines, hydronic systems, and light commercial fluid-handling applications where lead-free materials are required by code. The CUPC listing supports installation in California and other jurisdictions with strict plumbing product standards. The cUL listing addresses Canadian electrical safety and plumbing code requirements. Full-port construction minimizes flow restriction, making it a solid choice for systems where pressure drop must be controlled. It is commonly installed as an isolation or service valve in 2-inch copper or threaded piping systems.

Key Features

• Lead-free construction meets NSF/ANSI 61 and NSF/ANSI 372 requirements for potable water contact
• 600 WOG pressure rating for water, oil, and gas service
• Full-port bore minimizes pressure drop across the valve
• CUPC listed for compliance in California and Canadian jurisdictions
• cUL listed for Canadian plumbing and safety code compliance
• Quarter-turn operation for fast, positive shut-off

Compatibility

Designed as a lead-free OEM-style replacement or new-installation ball valve for 2-inch residential and light commercial plumbing and hydronic piping systems requiring CUPC and cUL certified components.

Installation Notes

Installation should be performed by a licensed plumber in accordance with applicable local plumbing codes and the IPC. Shut off the water supply and relieve system pressure completely before removing or installing any valve. Ensure pipe threads or compression fittings are clean and properly prepared before making connections. Do not over-torque the valve body during installation, as excessive force can damage the valve seat or body seals.

Technical Specifications

• Size: 2 inches
• Pressure Rating: 600 WOG
• End Connection: CC (Compression Connection)
• Lead-Free: Yes
• Certifications: CUPC, cUL
• Weight: 1.72 pounds

Standard Information

• Brand: BMI
• Manufacturer Part Number: 13209
