Bmi 13205 3/4 C/C BALL VALVE 600 WOG

Product Description

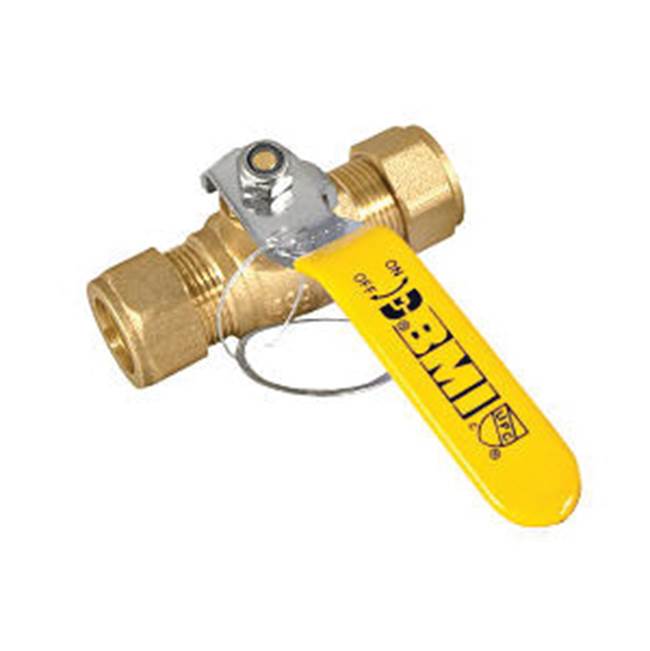

The BMI® 13205 ball valve features a 3/4 in nominal size with a sweat connection and full port. It has a 600 psi pressure rating. The valve features a brass body, PTFE seat, brass stem, NBR seal, PTFE packing, and a steel handle with a 304 stainless steel ball. It is lead-free and suitable for temperatures from -20 to 300 deg F.

• ANSI 372
• ANSI 61
• cCSAus Certified

Product Highlights

This BMI ball valve is ideal for plumbing applications requiring a reliable shutoff with lead-free components.

Product Information

Standard Information

• Brand: BMI
• Manufacturer Part Number: 13205

Technical Specifications

• Connection Type: Sweat
• Inlet to Outlet Length: 2.81 in
• Nominal Size: 3/4 in
• Pressure Rating: 600 psi
• Ball Material: 304 Stainless Steel
• Body Material: Brass
• Domestic/Import: Domestic
• Handle Material: Steel
• Lead-Free/Contains Lead: Lead-Free
• Packing Material: PTFE
• Port Type: Full
• Seal Material: NBR
• Seat Material: PTFE
• Stem Material: Brass
• Temperature Rating: -20 to 300 deg F
• Top to Inlet Center: 2.09 in
• Product Type: Sweat Ball Valve
• Material: Forged Brass
