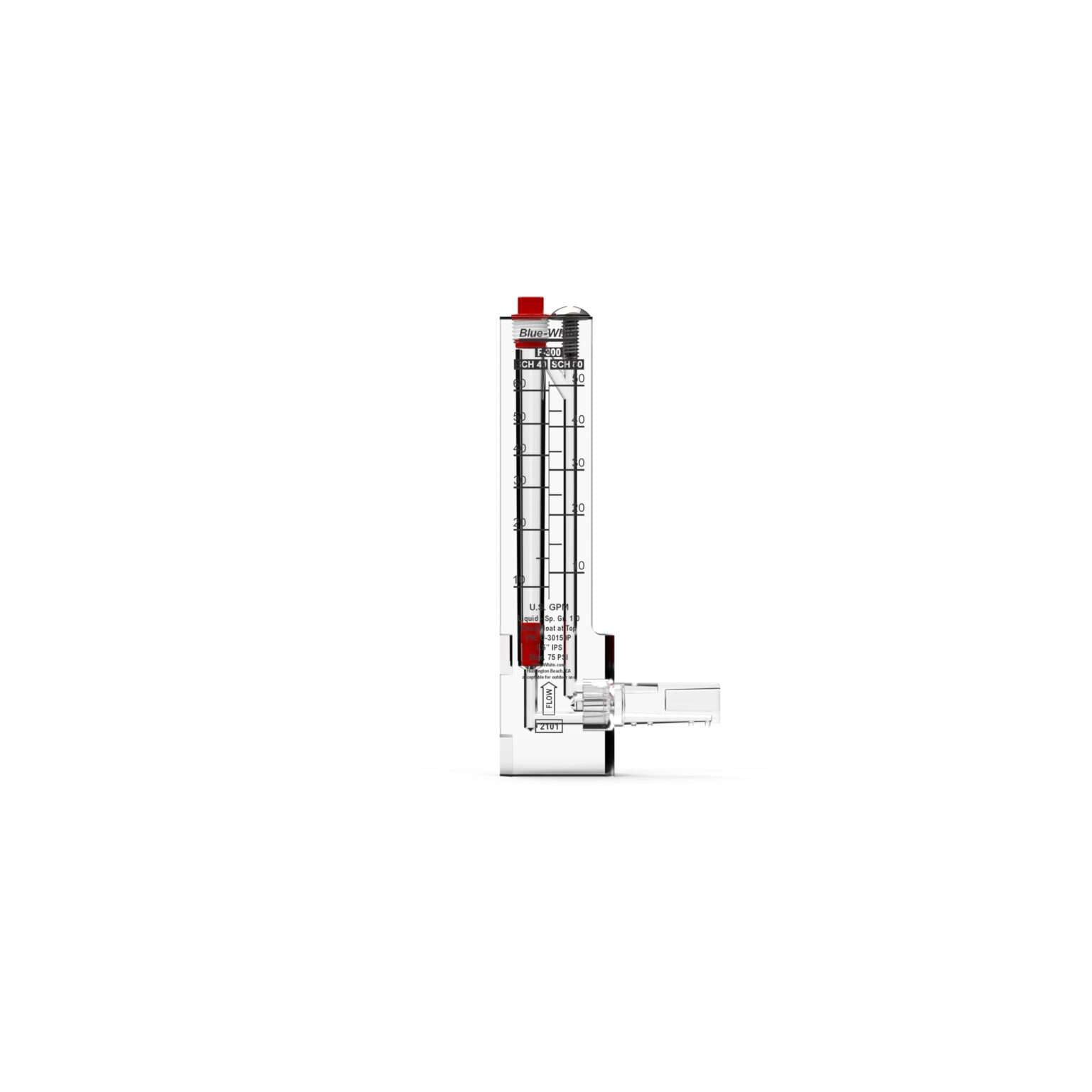

Blue White U-30150P F-300 PVC Flowmeter | Vertical Up Flow | 10-60 GPM

Product Description

The F-300 Series Flowmeter by Blue-White Industries, MPN U-30150P, is designed for accurate measurement of flow rates in various applications. This flowmeter enables quick installation and allows users to determine circulation system flow rates effortlessly.

• Measures flow rates from ten to sixty gallons per minute
• Durable one-piece machined acrylic construction
• Includes gasket seal and mounting clamps

Product Highlights

Compact size, high performance, and easy installation are key aspects of the F-300 Series Flowmeter.

Product Information

Standard Information

• Brand: Blue-White Industries
• MPN: U-30150P

Technical Specifications

• Pipe Requirements: IPS inch pipe size (ASTM-D-1785)
• Max. Pressure: 150 PSI (10.3 bar) at seventy degrees Fahrenheit
• Max. Fluid Temperature: 190 degrees Fahrenheit
• Max. Ambient Temperature: 14 to 110 degrees Fahrenheit
• Full Scale Accuracy: +/- 5%
• Power Requirement: None
• Enclosure Rating: NEMA 4X (IP56)
• Weight: 1 pound (0.45 kg)
