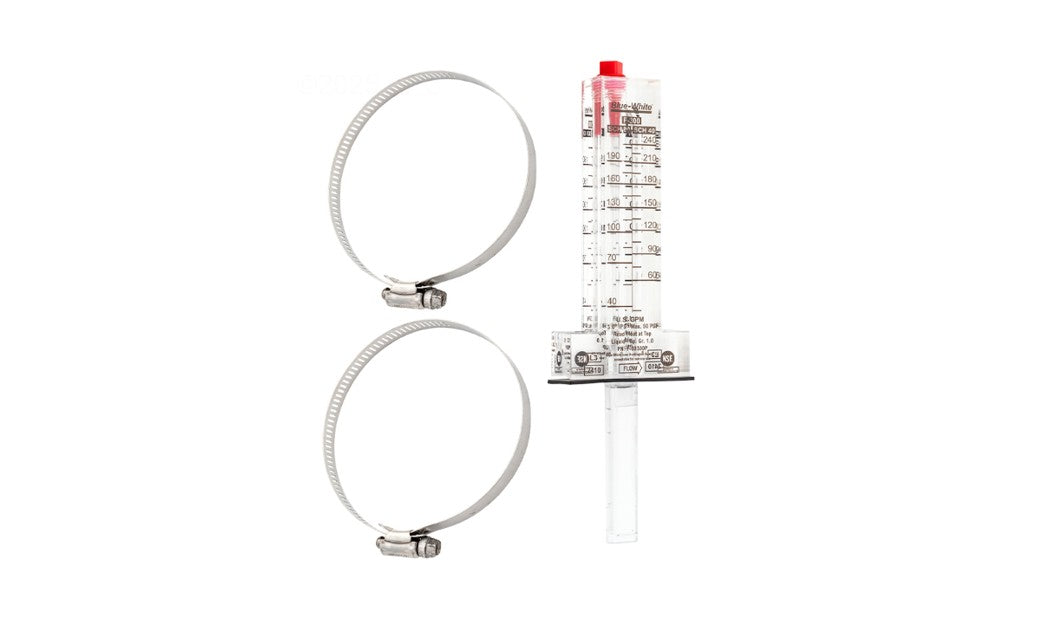

Blue White Industries F-30300P Flow Meter 3 PVC 45-240 GPM

Product Description

The Blue-White Industries F-30300P Flow Meter is designed for measuring water flow rates in PVC piping. With this flow meter, professionals can easily monitor flow rates from forty-five to two hundred forty gallons per minute. This unit features durable construction for reliable use in various applications.

• Installs quickly on existing piping.
• Accurate flow rate determination.
• Clear and easy-to-read dual scale display.

Product Highlights

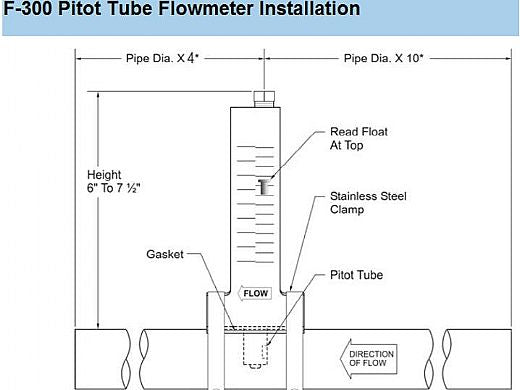

This flow meter offers high accuracy and ease of installation, making it ideal for circulation systems in pools and other water systems. It supports both horizontal and vertical installations for flexibility.

Product Information

Standard Information

• Brand: Blue-White Industries
• MPN: F-30300P

Technical Specifications

• Flow Range: 45-240 GPM
• Pipe Size: 3 inches PVC
• Material: Cast Acrylic body
• Accuracy: +/- 5%
• Max Fluid Temp: 190°F (88°C)
• Max Pressure: 150 PSI (10.3 bar)
• Enclosure Rating: NEMA 4X (IP56)
