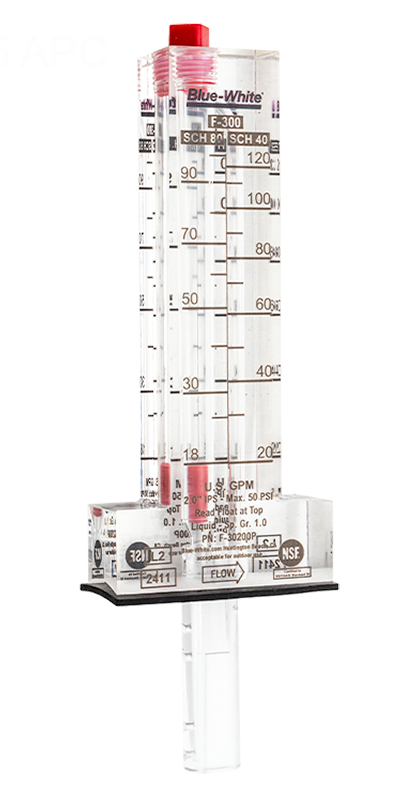

Blue White Industries F-30200P Flow Meter 40-150 GPM

Product Description

F-300 Series Flowmeter by Blue-White Industries is designed for measuring flow rates from twenty to one hundred fifty gallons per minute. This model is made for two-inch PVC pipe installations. The flowmeter is suitable for outdoor use and features a streamlined installation process.

• Installs quickly with minimal set-up time.

• High readability dual scale for efficient flow rate determination.

• Comes with mounting clamps and gasket seal for easy assembly.

Product Highlights

This flowmeter provides accurate flow measurement in a compact design suitable for various applications.

Product Information

Standard Information

• Brand: Blue-White Industries

• MPN: F-30200P

Technical Specifications

• Flow Rate Capacity:20 to 120 GPM

• Pipe Size: Two inches PVC

• Fluid Temperature Range: Up to 190°F

• Maximum Pressure: 150 PSI

• Body Material: Machined acrylic

• Float Material: PVDF

• Installation Specifications: Must be mounted horizontally for accurate measurement.
