Product Description

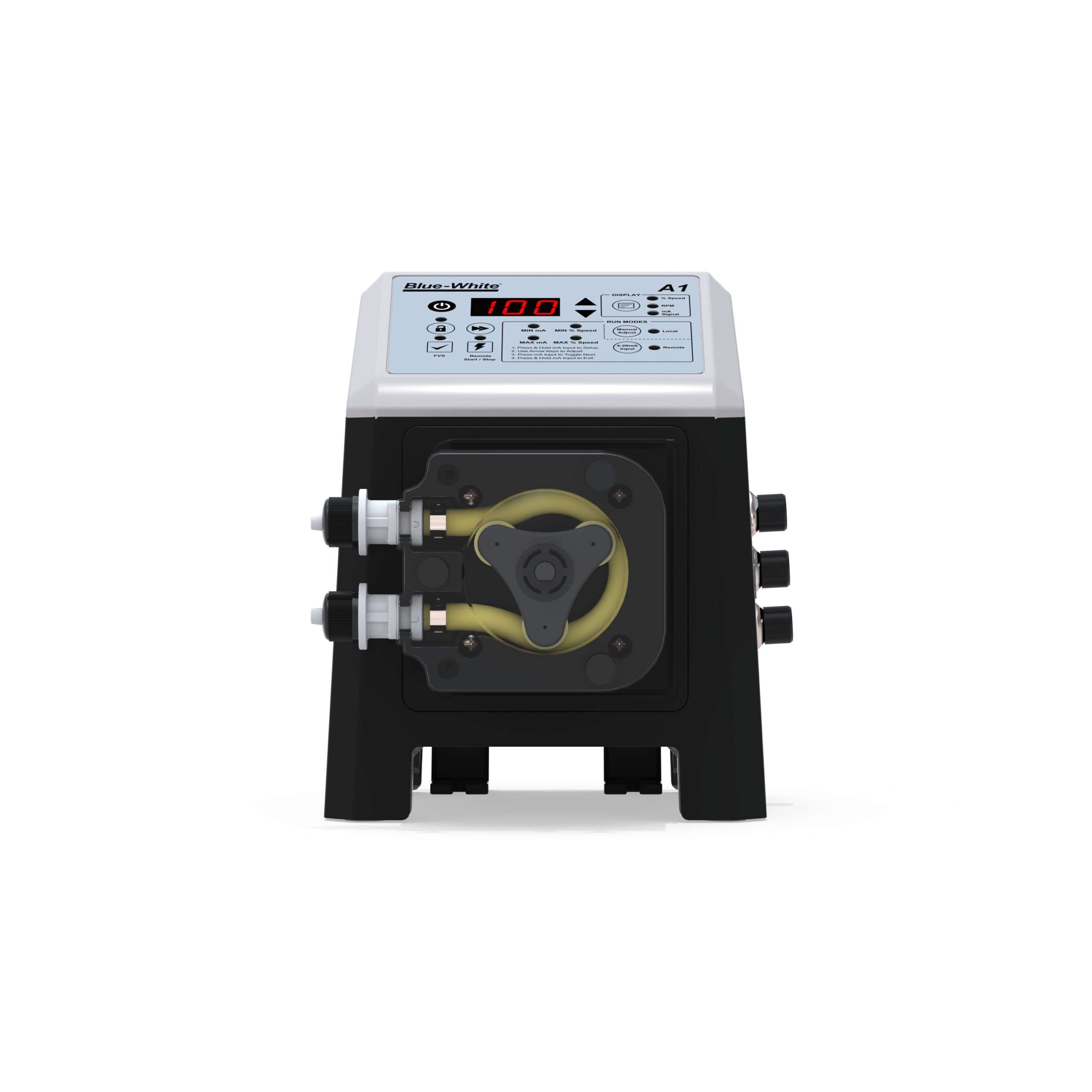

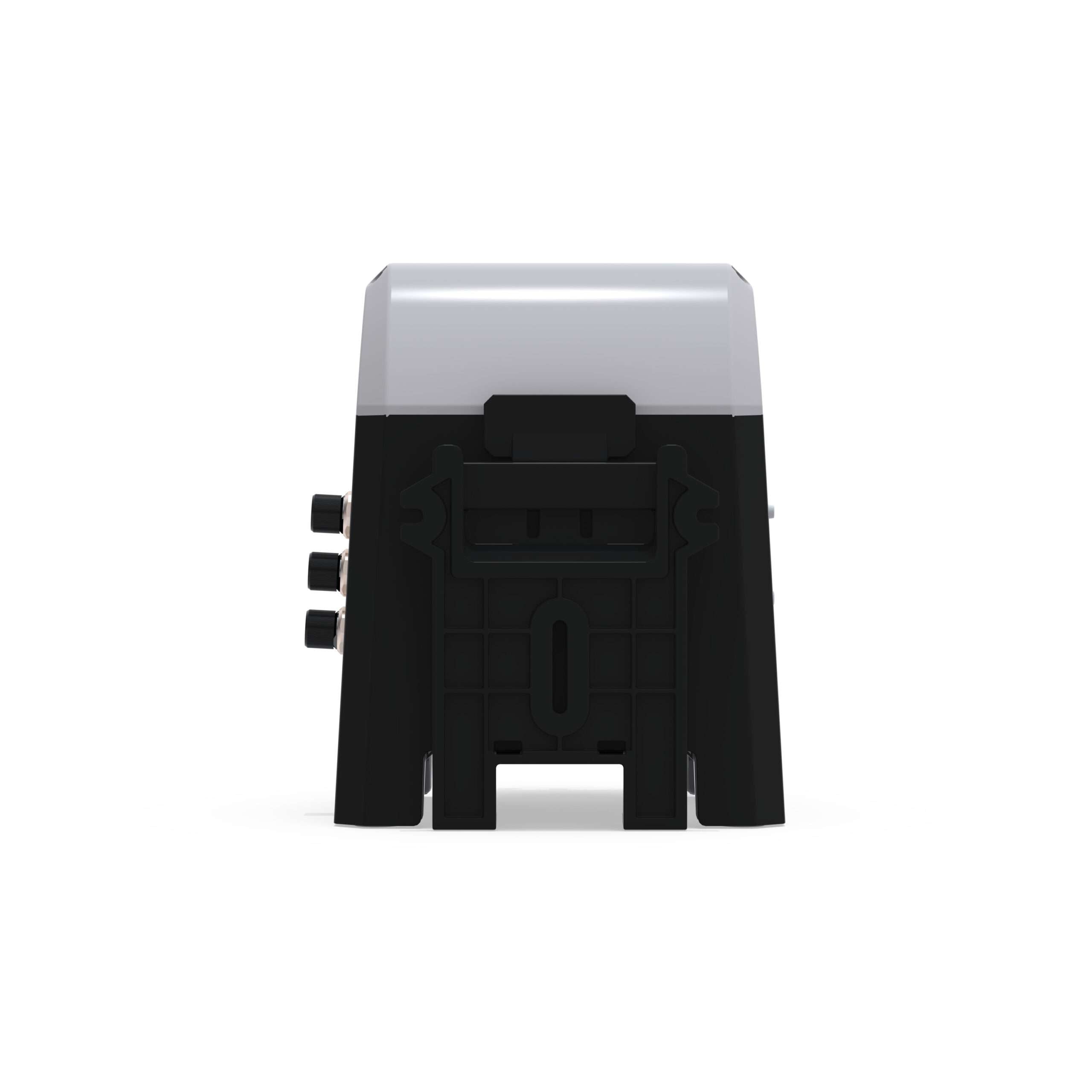

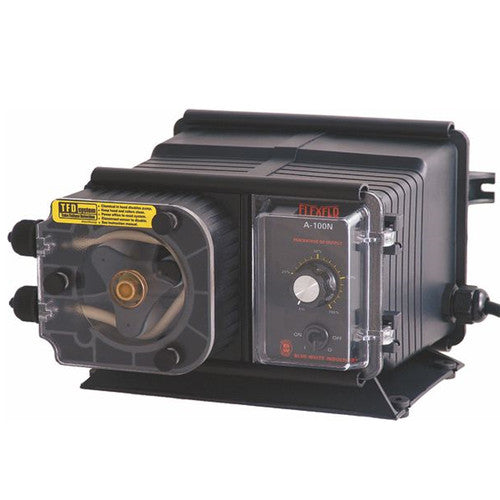

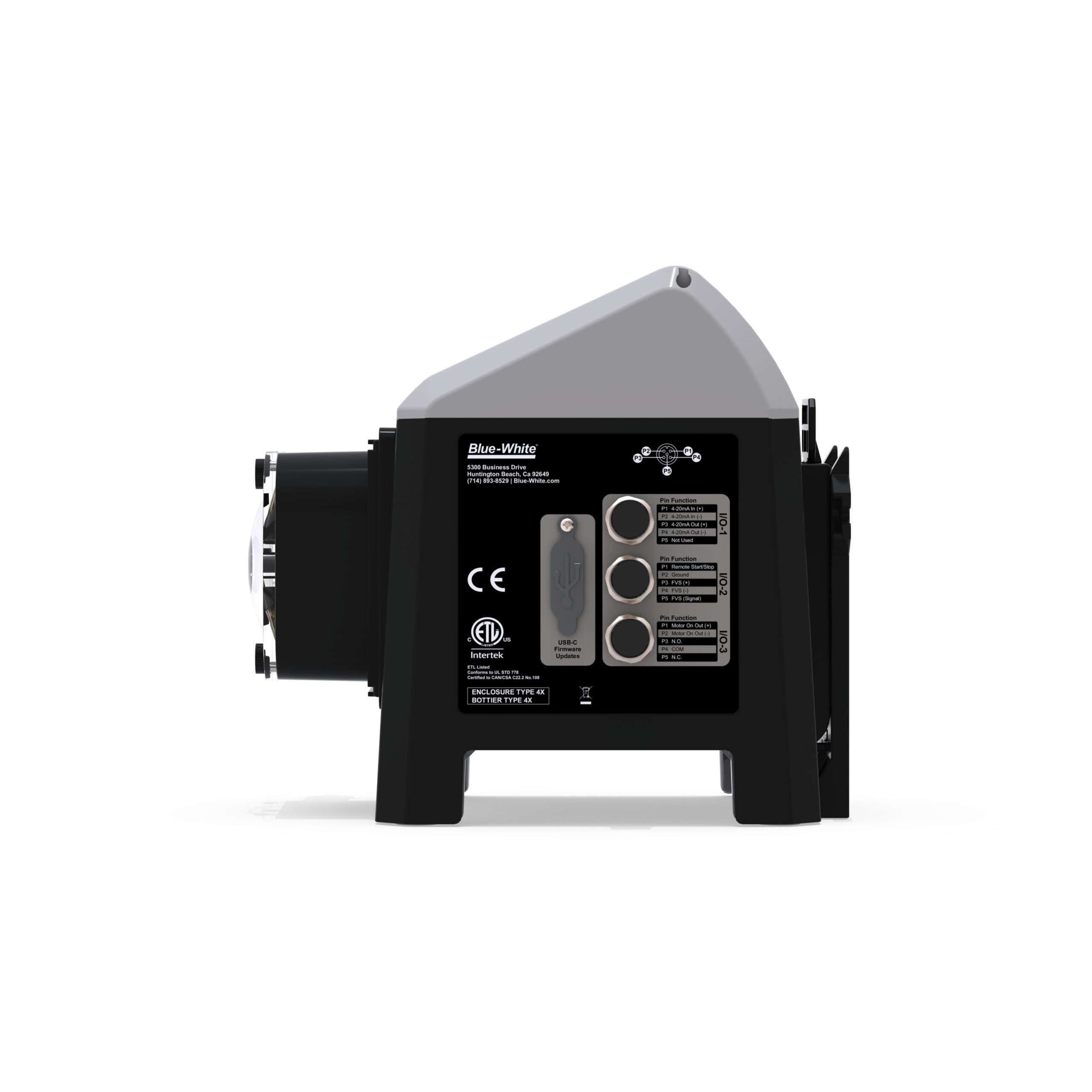

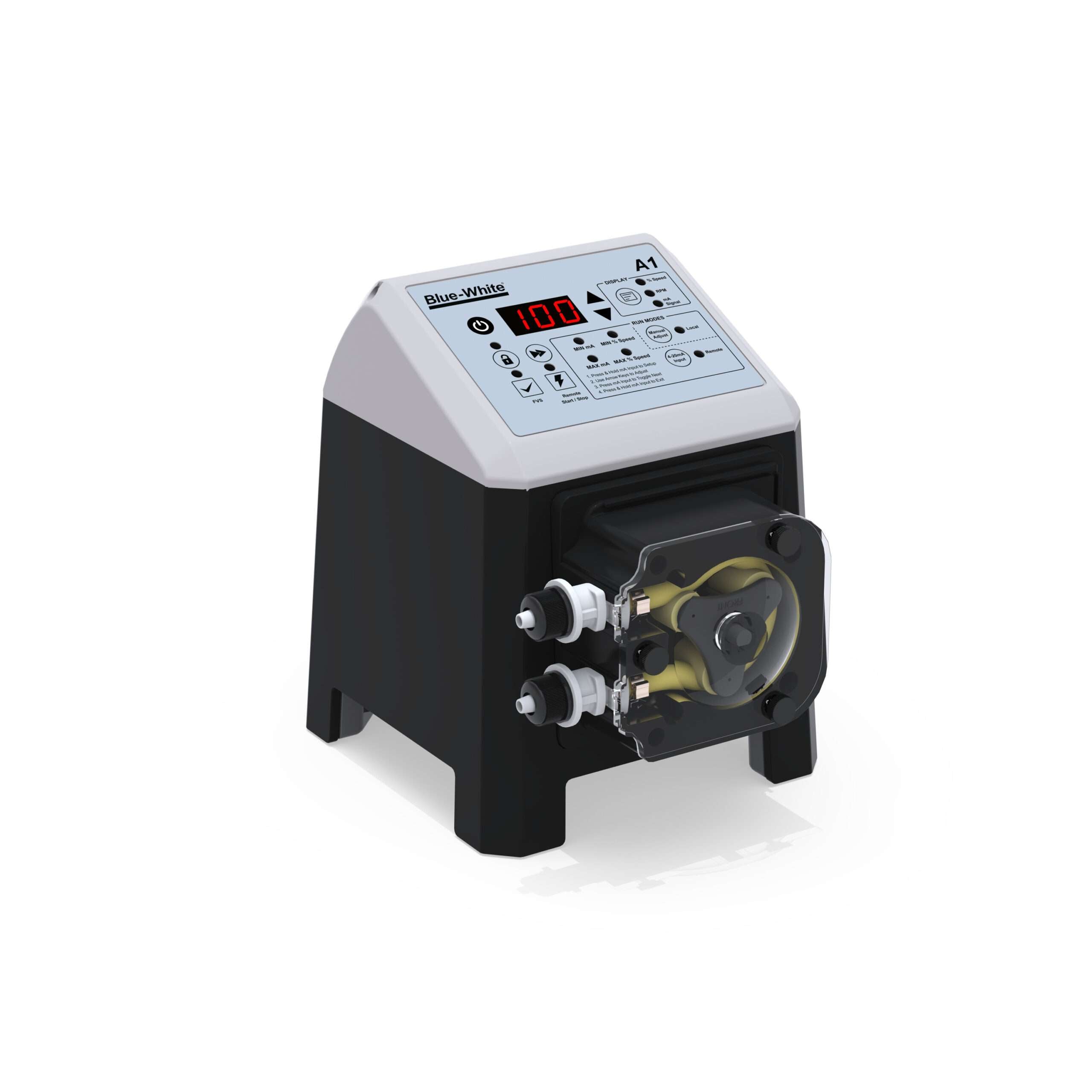

The Blue-White Industries FLEXFLO A1N10A-7T is a reliable peristaltic metering pump suitable for various chemical feed applications. It operates at one hundred fifteen volts alternating current (VAC) and sixty hertz (Hz), achieving flow rates up to fifty-two point five gallons per day with a maximum pressure of one hundred PSI. The pump has a NEMA four X rated enclosure, ensuring protection against water and chemicals. Its self-priming feature means it does not require bypass valves, simplifying installation.
- Equipped with a brushless DC motor for efficient operation.
- The design prevents clogging and reduces maintenance by eliminating valves.
- Includes Enhanced Tube Failure Detection (TFD+) to identify tube ruptures and prevent spills.
Product Highlights
This pump is ideal for those seeking a durable solution for precise chemical delivery. It is designed for ease of use with no tools required for tube replacement.
Product Information
Standard Information
-
Manufacturer: Blue White Industries
-
Brand: Flex-Flo
Technical Specifications
-
Flow Rate: Up to fifty-two point five gallons per day (GPD)
-
Voltage: 115 VAC
-
Pressure: 100 PSI (6.9 Bar)
-
Maximum Temperature: 185 °F (85 °C)
-
Head Material: Thermoplastic
-
Motor: Brushless DC, 50W
-
Dimensions: 7.25 W x 9 H x 10 D inches
-
Weight: 9.600 lb
