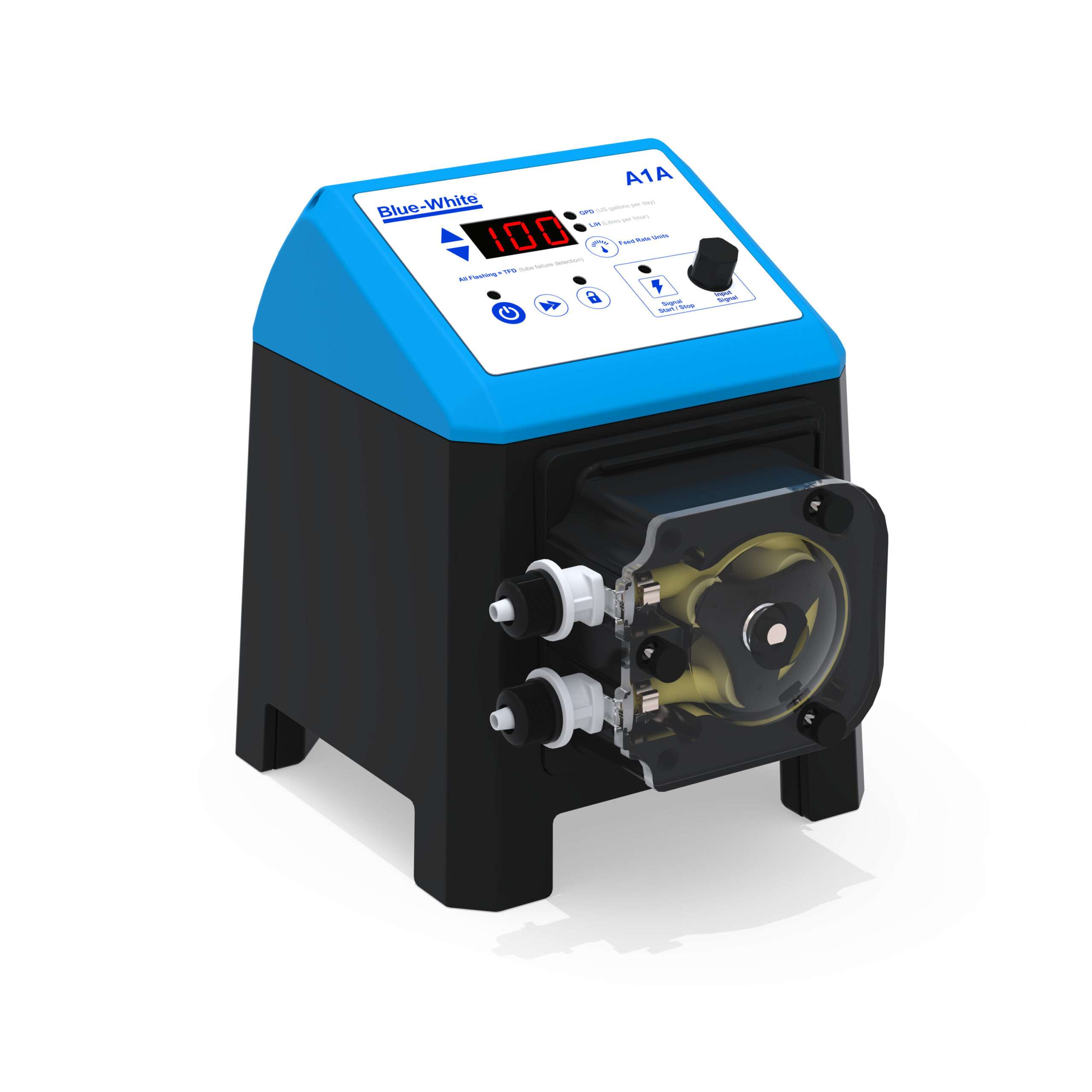

Blue-White Industries A1A4-7T FLEXFLO A1A Peristaltic Metering Pump - 100 GPD, 40 PSI, 115V

Product Description

The Blue-White Industries A1A4-7T FLEXFLO A1A Peristaltic Metering Pump offers reliable performance for chemical feed applications. With a flow capacity of up to 100 gallons per day and a pressure rating of 40 PSI, this pump is suitable for various environments. The self-priming design ensures efficient operation, even against maximum line pressure, while preventing vapor lock. The integrated Tube Failure Detection system provides an extra layer of protection against chemical spills.

• Peristaltic design eliminates clogging and reduces maintenance by avoiding valves.
• Self-priming mechanism for efficient operation without bypass valves.
• Compatible with Blue-White's Flow Verification Sensor system for enhanced monitoring.

Product Highlights

This pump is NSF 50 Listed, ensuring safety and compliance for use in swimming pools and other applications.

Product Information

Standard Information

• Brand: Blue-White Industries
• Application: Pool

Technical Specifications

• Maximum Working Pressure: 100 psig (6.89 bar)
• Maximum Suction Lift: 30 ft. of water
• Flow Range: 0.01 - 100 GPD
• Amp Draw: 0.6A max at 115V
• Dimensions: 7.25 W x 9 H x 10 D inches
• Weight: 6 lb. (2.7 Kg)
• Enclosure Rating: NEMA 4X (IP66)
• Motor Type: Brushless DC, 50W
