Blue-White F-30600P 6 Flow Meter | 170-1100 GPM

Product Description

Blue-White F-30600P flow meter is a reliable device for measuring fluid flow through six inch PVC pipes. Designed to ensure accurate readings with a pitot tube system, this flow meter accommodates various applications from pools to irrigation systems.

• GPM flow range: 170 to 1100
• Closed pipe installations capable
• Dual scale display for GPM and LPM

Product Highlights

This flow meter is engineered for performance with easy installation and accurate readings. The one-piece acrylic body ensures durability and chemical resistance.

Product Information

Standard Information

• Brand: Blue-White
• MPN: F-30600P

Technical Specifications

• Flow Range: 170 to 1100 GPM

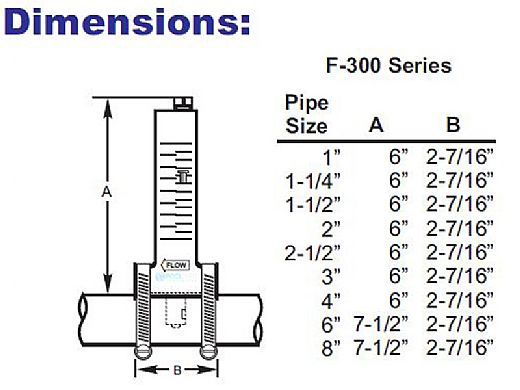

• Pipe Size: Six inch PVC
• Materials: Cast acrylic body, PVDF float, neoprene gasket
• Max Pressure: 150 PSI at seventy degrees Fahrenheit
• Temperature Range: 14 to 110 degrees Fahrenheit
• Accuracy: +/- 5%

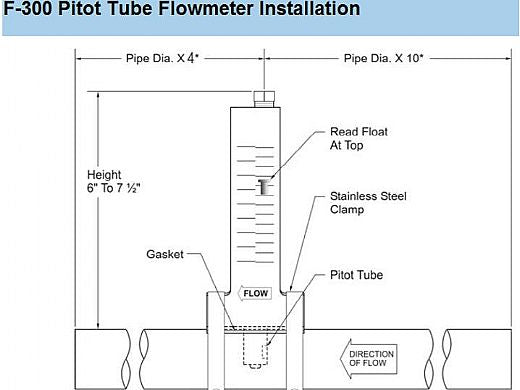

• Installation Requirements: Minimum straight pipe length of ten times the pipe diameter upstream and four times downstream
• Mounting: Suitable for horizontal installation
