Blue-White F-30250P Flowmeter PVC 2-1/2In 60-240GPM

Product Description

The Blue-White F-30250P flowmeter is designed for efficient flow measurement in various applications. This unit fits 2-1/2 inch pipes and can measure flow rates between sixty to two hundred forty gallons per minute. Its PVC construction ensures both durability and resistance to corrosion.

• Corrosion-resistant materials for extended service life.
• One-piece machined acrylic body for accuracy.

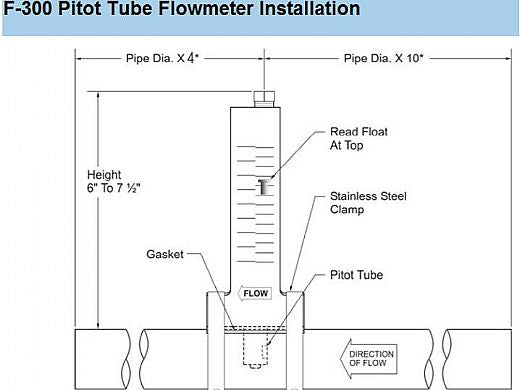

• Quick and easy installation on existing pipes.

Product Highlights

Ideal for use in both horizontal and vertical installations. The F-30250P is NSF approved, making it suitable for drinking water applications.

Product Information

Standard Information

• Brand: Blue-White Industries
• MPN: F-30250P

Technical Specifications

• Flow Rate: 60-240 GPM

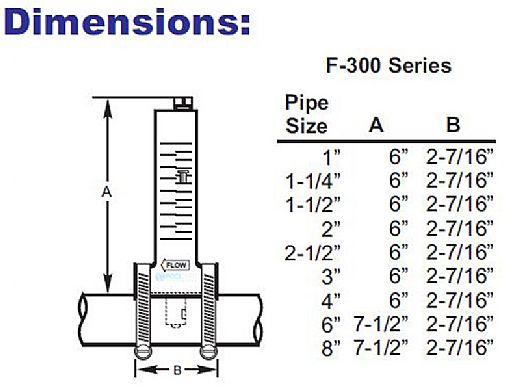

• Pipe Size: 2-1/2 inches
• Max Pressure: 150 PSI (10.3 bar) @ 70 F (21 C)
• Max Fluid Temperature: 190 F (88 C)
• Materials of Construction: Cast Acrylic Body, PVDF Float, Neoprene Gasket
• Compatible Pipe Standards: IPS inch pipe size (ASTM-D-1785)
• Accuracy: +/- 5%
