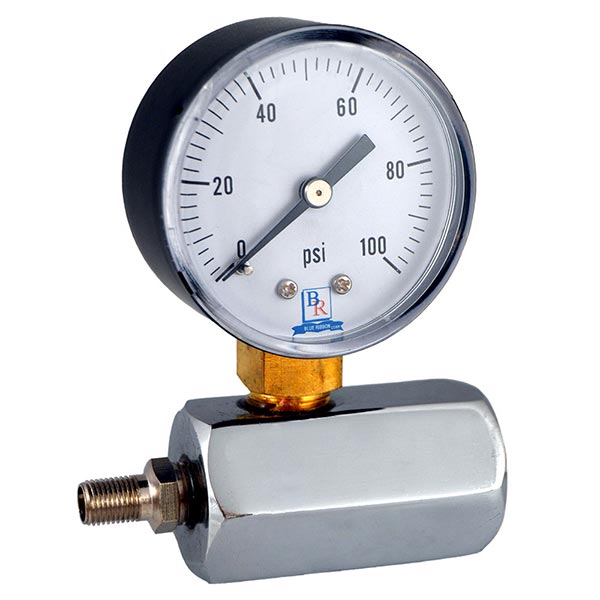

Blue Ribbon BRGT-100 Standard Gas Pressure Test Gauge Assembly, 100 psi, 3/4 in FNPT Connection

Product Description

The Blue Ribbon BRGT-100 is a gas pressure test gauge assembly designed for accurate testing in commercial and residential settings. With a maximum pressure rating of one hundred psi and a three-fourths inch FNPT connection, this gauge serves as a reliable tool for determining gas line integrity. Prior to gas introduction, the system is pressurized with air, allowing the gauge to detect potential leaks effectively. The assembly includes a valve body that acts solely as a bleed port, essential for maintaining line security and performance.

• Combination of gas pressure test gauge and valve
• Indicates leaks before gas flow
• Ideal for both commercial and residential applications

Product Highlights

This gauge supports effective monitoring of gas line pressures and helps ensure safety standards are met.

Product Information

Standard Information

• Brand: Blue Ribbon
• MPN: BRGT-100

Technical Specifications

• Accuracy: 3-2-3%
• Application: Commercial and residential gas testing
• Connection Size: 3/4 in FNPT
• Dial Diameter: 2 inches
• Includes: 3/4 in FNPT Brass Plated Manifold and 1/8 in Air Valve
• Measurement Range: 0-5 to 0-160 psi
• Pressure Range: 100 psi
• Type: Standard
