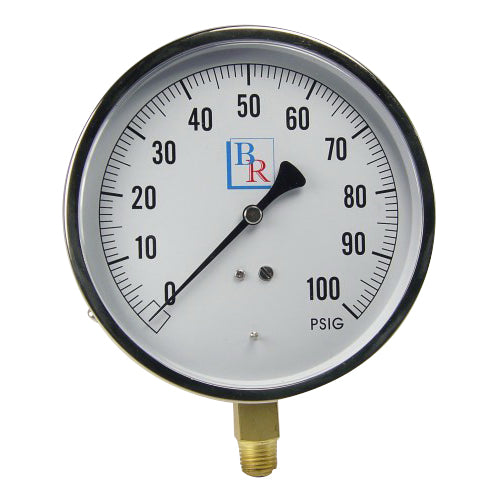

Blue Ribbon BR601D-454E 0 to 100 psi 4.5 inch Dial 1/4 inch MNPT Lower Mount Contractor Pressure Gauge

Product Description

The Blue Ribbon BR601D-454E is a contractor pressure gauge designed for various HVAC and plumbing applications. It has a measurement range from zero to one hundred psi. The gauge features a one-quarter inch MNPT connection and is built with a 304 stainless steel case, providing durability for harsh conditions.

• Range: 0 to 100 psi
• Material: 4.5 inch dial made of stainless steel
• Accuracy: +/- 1%

Product Highlights

This pressure gauge is engineered for professionals in HVAC, plumbing, standard refrigeration, and steam heating processes.

Product Information

Standard Information

• Type: Contractor
• Connection: 1/4 inch MNPT

Technical Specifications

• Range: 0 to 100 psi
• Material: 304 Stainless Steel Case, Glass Lens, Bronze Bourdon Tube, Brass Socket and Movement
• Dial Size: 4.5 inch
• Mounting: Lower
• Accuracy: +/- 1%
• Degree of Protection: IP52
• Standards/Approvals: ASME B40.100 Grade 1A
