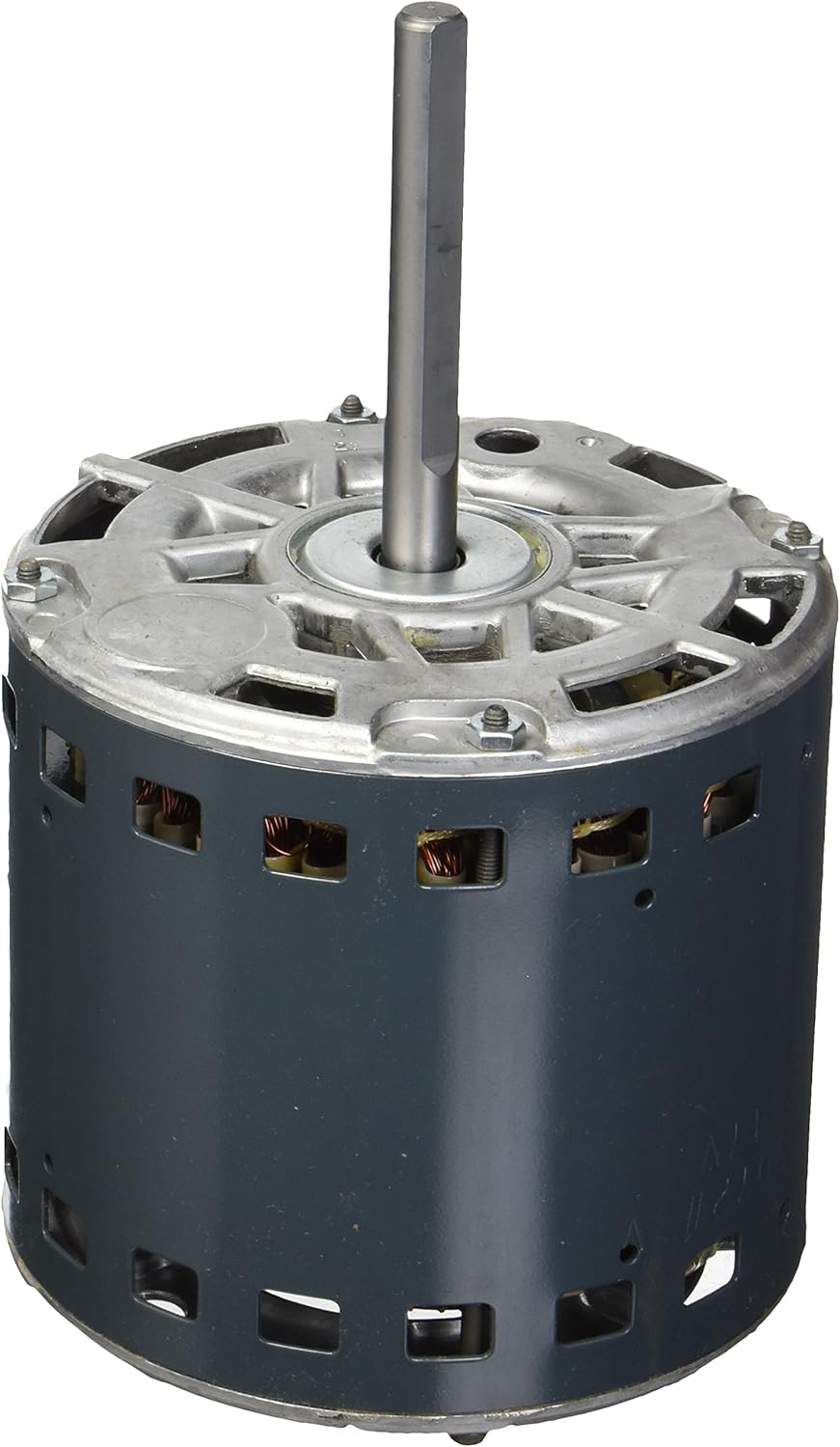

Rheem 51-24272-01 Blower Motor 0.5 HP 120V 1075RPM 3-Speed

Product Description

The Rheem 51-24272-01 blower motor is designed to provide reliable performance in HVAC systems. This motor, rated at 0.5 horsepower with 120 volts, operates at 1075 RPM with three speeds. It's an OEM replacement for Rheem models and compatible with various HVAC applications.

• 0.5 HP

• 120V, 1075 RPM

• Three speeds

Product Highlights

This blower motor ensures efficient airflow and optimal performance in heating and cooling systems. It is compatible with multiple Rheem, Ruud, and WeatherKing models, making it a versatile choice for HVAC repair and maintenance.

Product Information

Standard Information

• Brand: Rheem

• MPN: 51-24272-01

• Power: 0.5 HP

• Voltage: 120V

• Speed: 1075 RPM

• Number of Speeds: 3

Technical Specifications

• RPM: 1075

• Phase: 1-Phase

• Sleeve Bearing Type: Included

• Mounting: Shell-Band, Shell-Screw

• Frame: NEMA 48

• Overall Length: 9-1/16 inches

• Motor Body Size: 5-5/8 Inch Diameter x 5-1/4 Inch Length

• Shaft Size: 1/2 Inch Diameter x 3 3/4 Inch Length

• Shaft Length: 3-3/4 inches

• Rotation: Counterclockwise

• Amperage Rating: 7.9A FLA at 120V, 15A LRA at 120V
