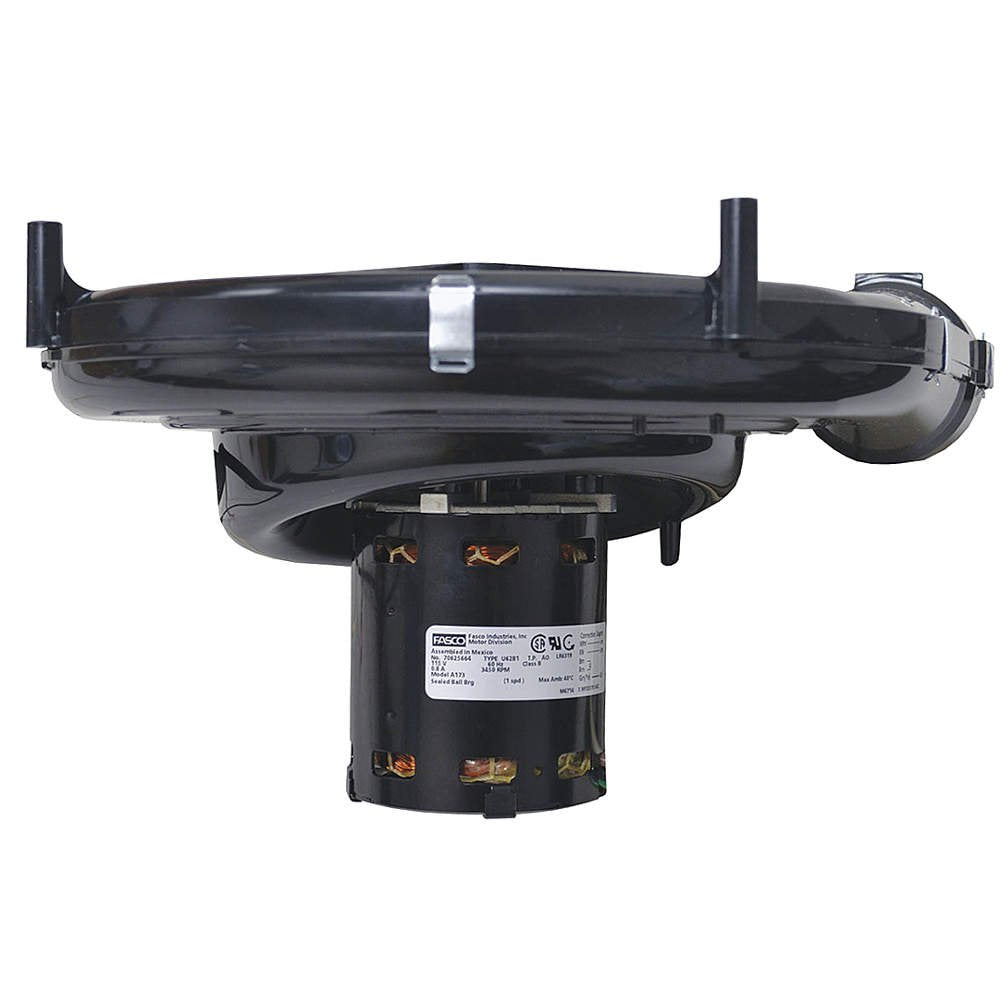

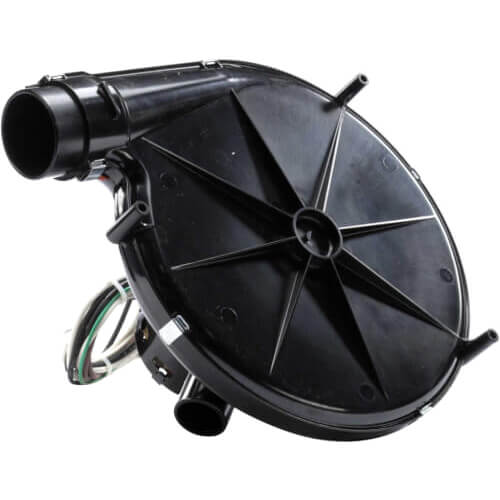

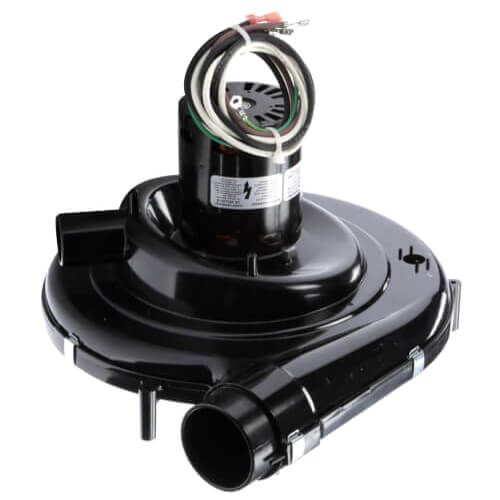

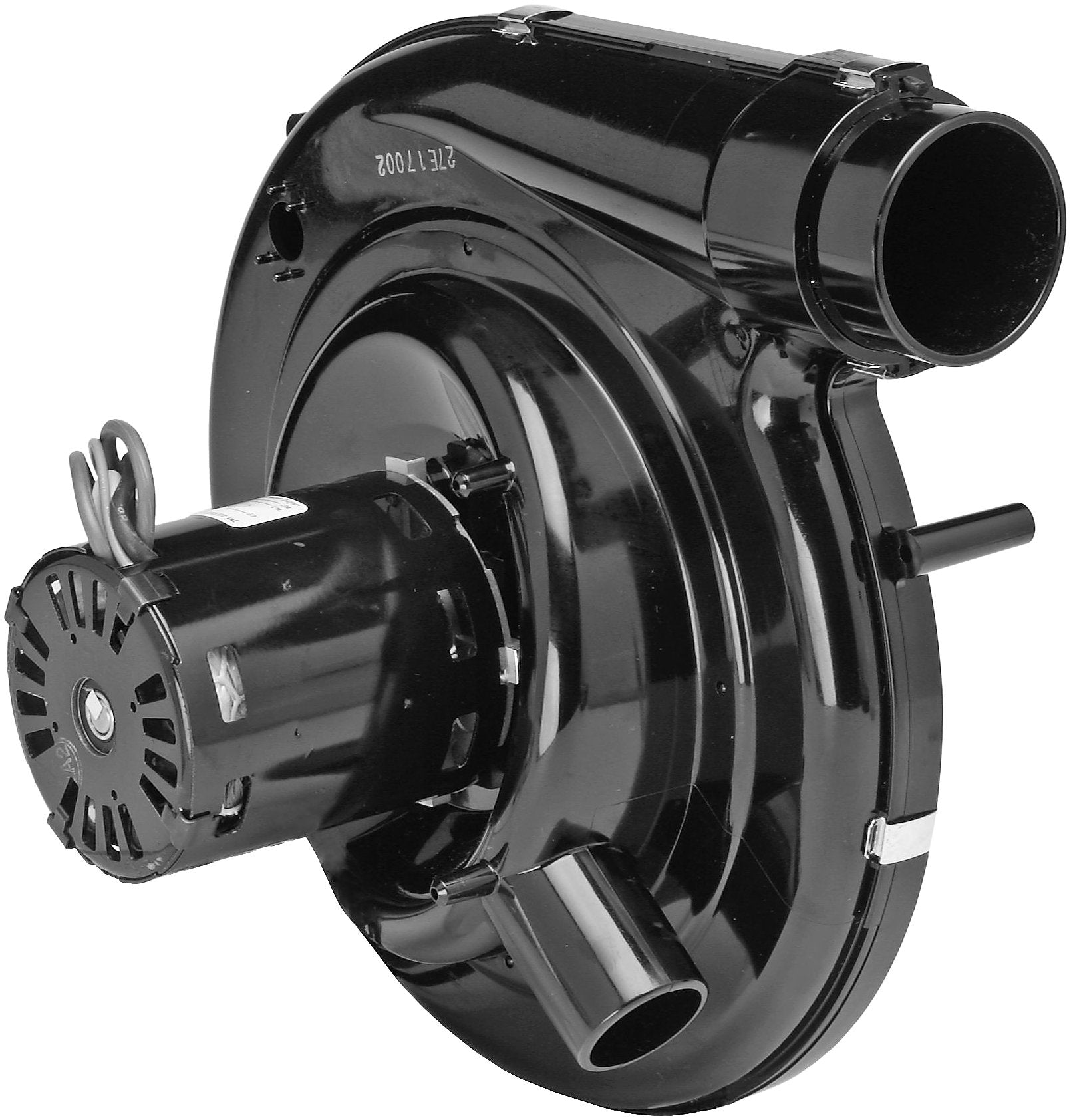

Fasco A173 Draft Inducer Blower Motor 115V 1/18 HP 3450 RPM

Product Description

The Fasco A173 Draft Inducer Blower Motor is designed for use in furnaces. This blower motor provides reliable performance with a 1/18 horsepower motor, operating at 3450 RPM and 115 volts.

• 1/18 HP
• 3450 RPM
• 115 Volts

Product Highlights

This blower motor is suitable for various furnace applications, compatible with multiple brands like Alltemp (Rotom) and Intercity Products.

Product Information

Standard Information

• Brand: Fasco
• Model: A173
• Application: Furnaces

Technical Specifications

• Horsepower: 1/18 HP
• Speed: 3450 RPM
• Voltage: 115 Volts
• Amperage: 0.8 Amps
• Rotation: Counterclockwise
• Bearing Type: Ball Bearing
• Housing Material: Plastic
• Wheel Diameter: 9 inches
• Inlet Diameter: 1 1/4 inches
• Outlet Diameter: 2 3/8 inches
• Motor Type: Permanent Split Capacitor
• Insulation Class: B
• Enclosure Type: Open
• Overload Protection: Thermal
• Maximum RPM: 3,450 RPM
• Standards: CSA Certified, UL Listed
