Fasco A325 3.3 Frame Permanent Split Capacitor Blower 3200rpm 1/10HP 208-230V 0.6 amps

Product Description

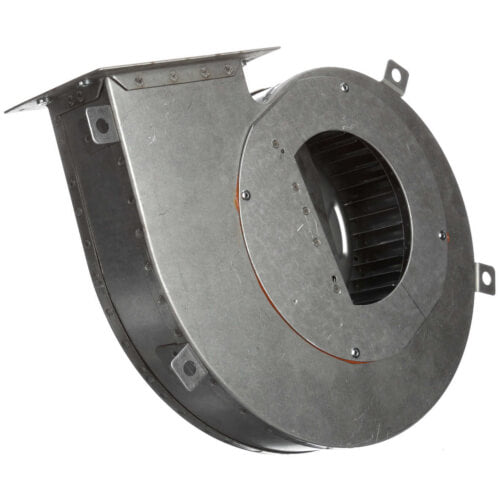

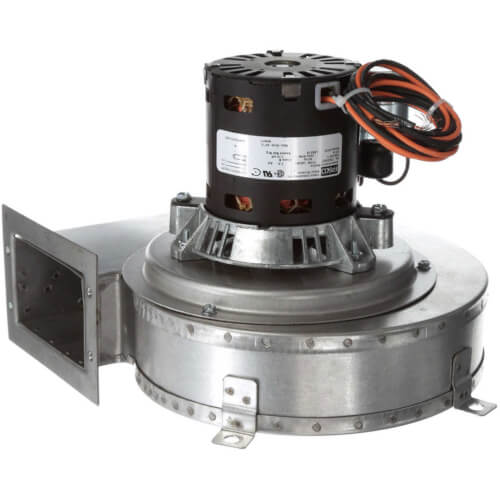

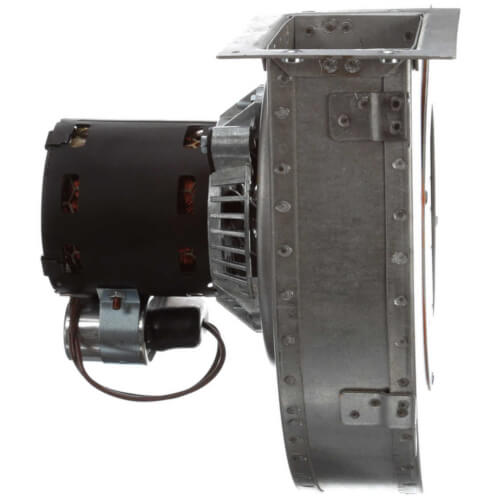

The Fasco A325 is a 3.3 Frame Permanent Split Capacitor OEM Replacement Blower. It operates at 3200 RPM with 1/10 HP and 208-230 volts. This blower features ball bearings and is thermally protected. It is a specific purpose blower designed for gas and oil furnaces and heaters. This product replaces Lennox part numbers 7062-2845, 7062-4751, and 98G8701.

• Thermally protected
• UL recognized
• Clockwise shaft end rotation

Product Highlights

Fasco A325 blower with ball bearings, suitable for gas and oil furnaces.

Product Information

Standard Information

• Brand: Fasco
• MPN: A325

Technical Specifications

• Speed: 3200 RPM
• Voltage: 208-230 Volts
• Horsepower: 0.1 HP
• Amperage: 0.6 Amps
• Bearings: Ball
• Rotation: Clockwise
• Approvals: CSA, UL
• Insulation Class: B
• Overload Protection: Thermally
• Outlet Shape: Rectangle
• Enclosure Type: Open
• Speeds: 1
• Frequency: 60 Hz
• Phase: Single
• Max Ambient Temperature: 104°F
• Dimensions: 11 x 8 x 7.5 inches
• Weight: 7 pounds
