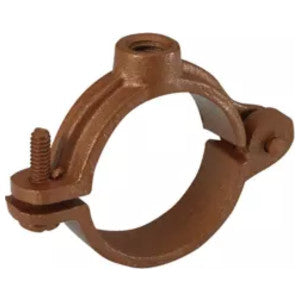

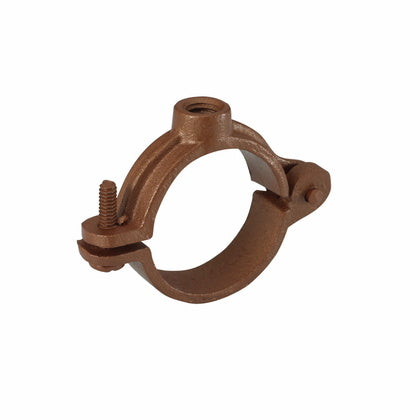

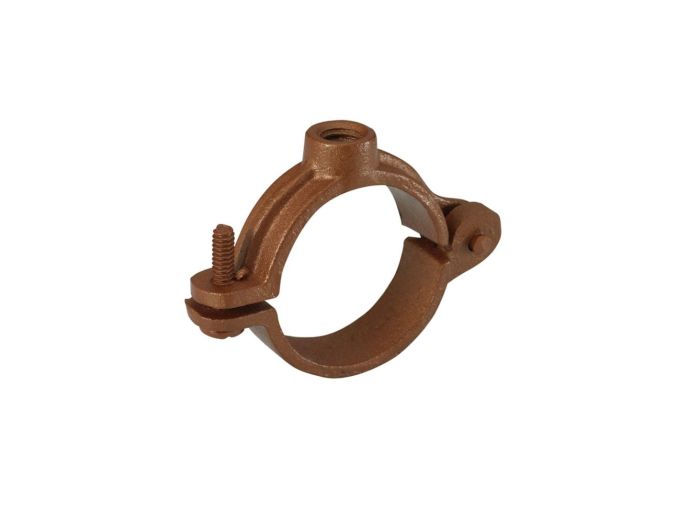

Bline B3198HCT-2 Hinged Extension Split Pipe Clamp 2 inch

Product Description

The BLINE B3198HCT-2 is a hinged extension split pipe clamp designed to provide rigid support for suspending tubing horizontally or vertically. Constructed from malleable iron and Dura Copper, this clamp supports a maximum pipe size of 2 inches. It conforms to Federal Specification WW-H-171E & A-A-1192A, Type 25 and Manufacturers Standardization Society ANSI/MSS SP-69 & SP-58, Type 12.

• Supports suspend tubing horizontally or vertically
• Hinged extension split pipe clamp
• Conforms to Federal Specification WW-H-171E & A-A-1192A, Type 25

Product Highlights

Hinged extension split pipe clamp made from malleable iron and Dura Copper, designed for suspending tubing.

Product Information

Standard Information

• Brand: BLINE
• Manufacturer Part Number: B3198HCT-2
• Country of Origin: China

Technical Specifications

• Catalog Number: B3198HCT-2
• UPC: 781011121150
• Product Length/Depth: 3.615 in
• Product Height: 2.667 in
• Product Width: 0.647 in
• Product Weight: 0.36 lb
• Product Type: Hinged extension split pipe clamp
• Application: Supports suspend tubing horizontally or vertically
• Pipe size - max: 2 in
• Model: Hinged extension split pipe clamp
• Type: Type 12
• Material: Malleable iron Dura Copper
• Manufacturer Part Number: 78101112115
• Manufacturer: Cooper
• Family Series: Cooper Conduit Mounts
• Style: Pipe Clamp
• Rod Size: 3/8 in.-16
• Conduit Size: 2 in
• Load Capacity: 180 lb
• Finish: Dura Copper™
• Manufacturer #: B3198HCT-2
• Series: B3198HCT
