Blackburn WR949 AL HTYPE COMP CONN 795-477

Product Description

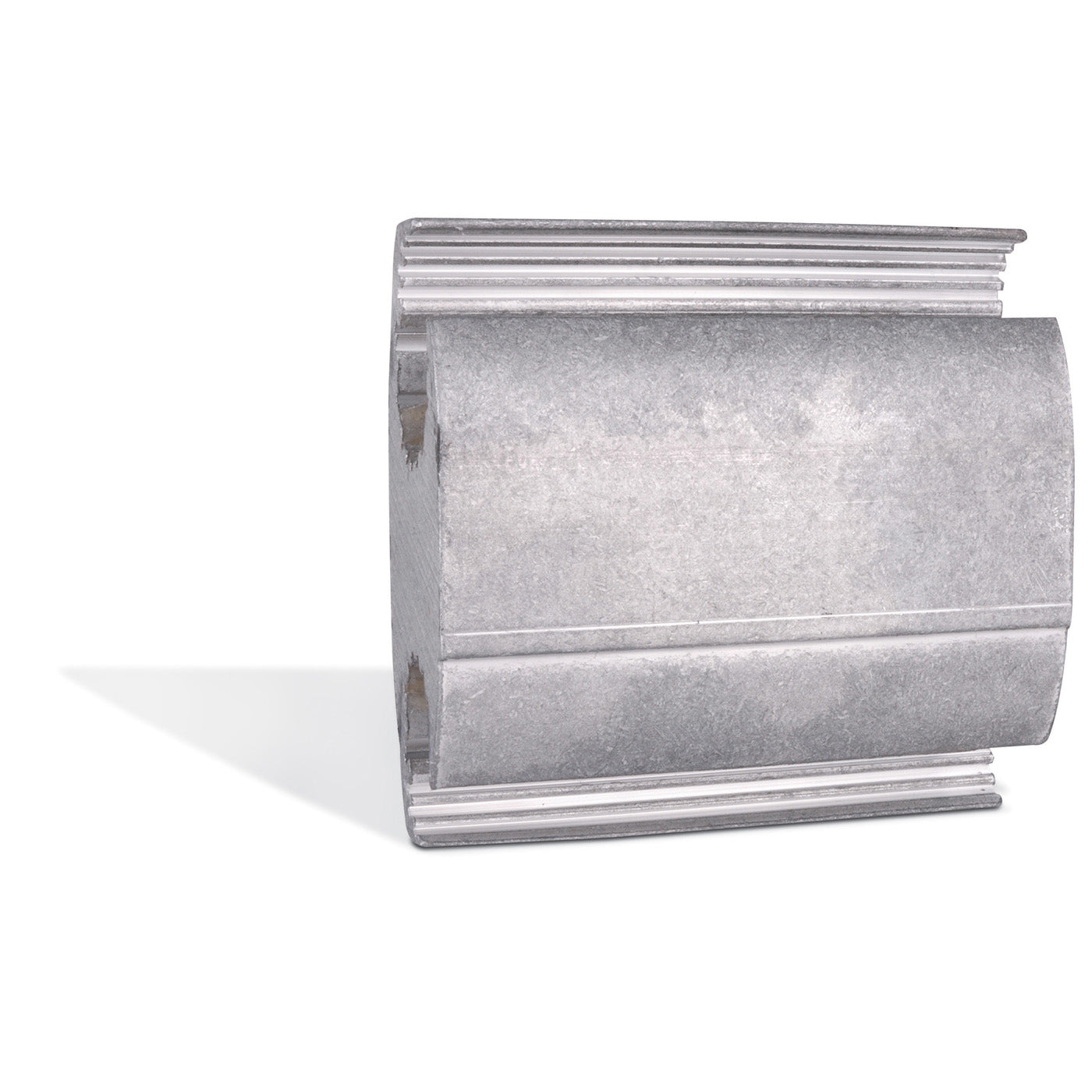

The Blackburn WR949 is an aluminum wide range H-type compression connector. This connector is designed for various wire sizes, including main wire sizes of 795 (26/7) to 477 (30/7) ACSR or 900 to 600 STR kcmil. The tapping capability handles sizes from 336 (18/1) to 1/0 ACSR and 350 to 2/0 STR. It is compliant with ANSI C119.4 specifications and is RUS accepted.

• Compatible with aluminum and copper conductors
• Temperature rated up to 90 degrees Celsius
• Made from high-strength 1350 aluminum alloy

Product Highlights

Use this connector for secure connections in electrical applications involving aluminum and copper wires.

Product Information

Standard Information

• Brand: Blackburn
• MPN: WR949

Technical Specifications

• Material: Aluminum
• Weight: 1.65 lbs
• Dimensions: Length 4-3/4 inches
• Connection Type: Compression
• Number of Conductors: 2
• Application: For combinations of aluminum to aluminum and aluminum to copper conductors
• Environmental Conditions: All seasons / conditions
• Special Features: High strength and high conductivity
