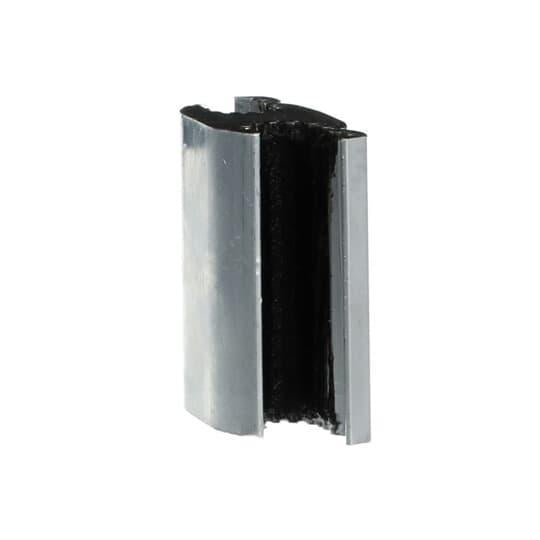

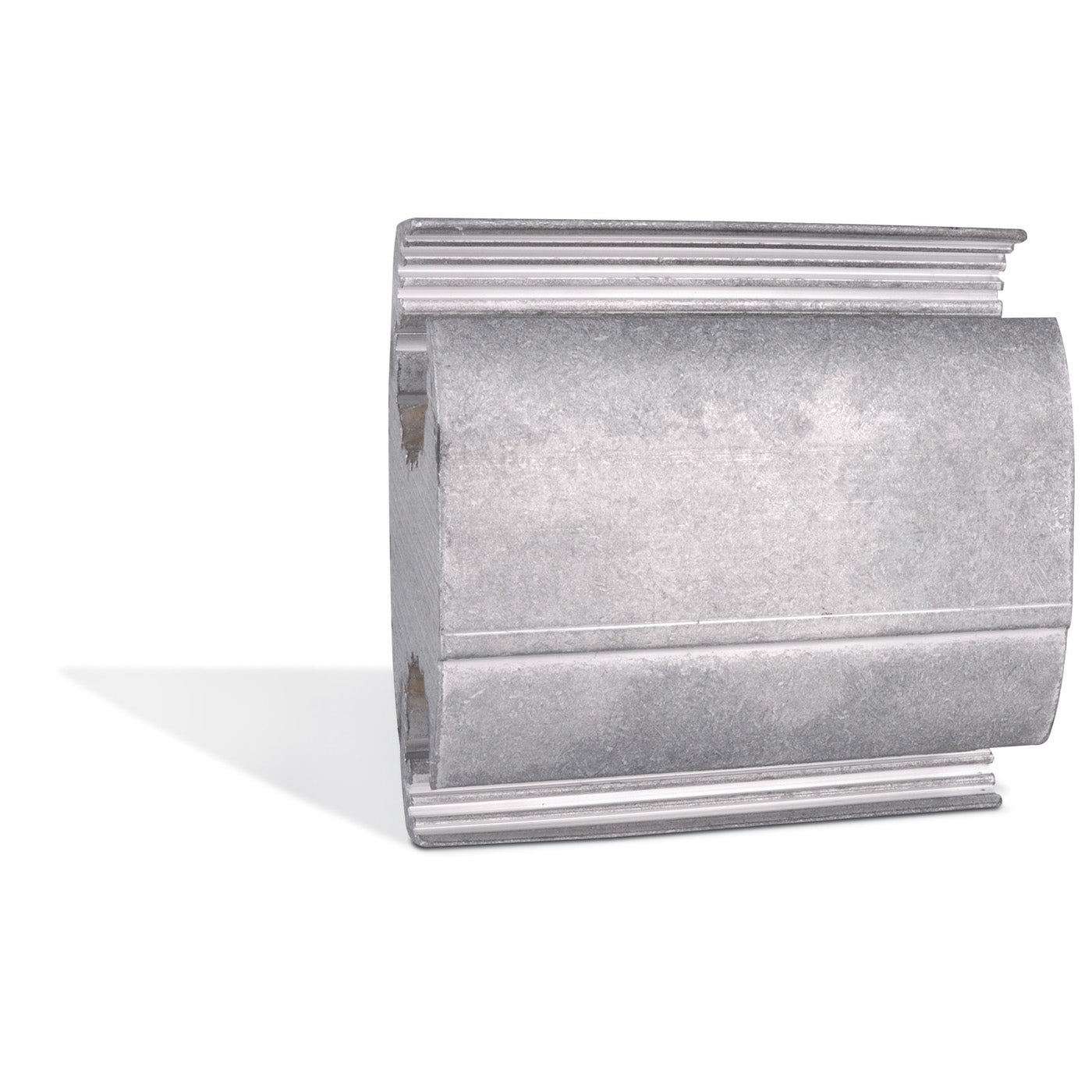

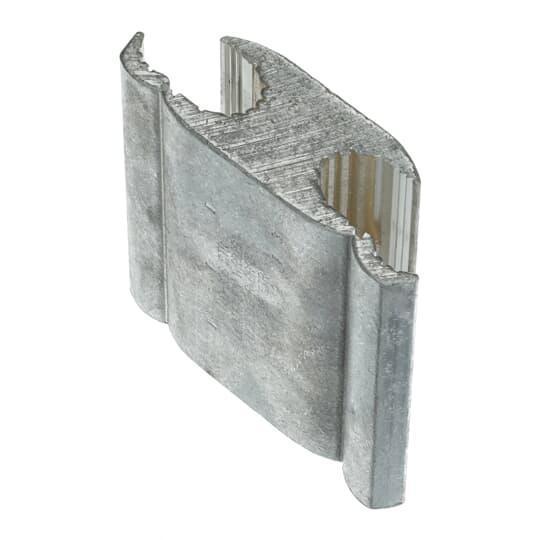

Blackburn WR909 Compression Tap Connector Type H Wide Range

Product Description

The Blackburn WR909 is a Type H Wide Range Compression Tap Connector. This connector is designed for use with various conductor sizes to create secure connections in electrical systems. It accommodates main and tap conductors made from either stranded or solid aluminum or copper. The WR909 is particularly suited for tasks that require reliable overhead and grounding connections.

• Compatible with conductor sizes from 300 to 556 kcmil ACSR and 336 to 600 kcmil stranded.
• Features ribbed design for improved contact and stability.
• Utilizes standard compression tools for installation, eliminating the need for special equipment.

Product Highlights

The Blackburn WR909 provides a field-proven solution for electrical connections, ensuring efficiency and safety.

Product Information

Standard Information

• Brand: Blackburn
• Manufacturer: ABB

Technical Specifications

• Conductor Type: ACSR/Aluminum/Copper/Solid/Stranded
• Dimensions: 4-3/4 inches long
• Series: WR Series
• Specifications: R or Z Die Code, 0.666 to 0.893 inches diameter main conductor, 0.398 to 0.684 inches diameter tap conductor, 2-Conductor
• Temperature Rating: 90 degrees Celsius
• Type: Type H Wide Range
• Shape: H
• Main/Run Size: 300 to 556 kcmil ACSR, 336 to 600 kcmil stranded
• Tap Size: 336 18/1 to 300 kcmil ACSR, 600 to 336 kcmil stranded
• Material: Aluminum
