Product Description

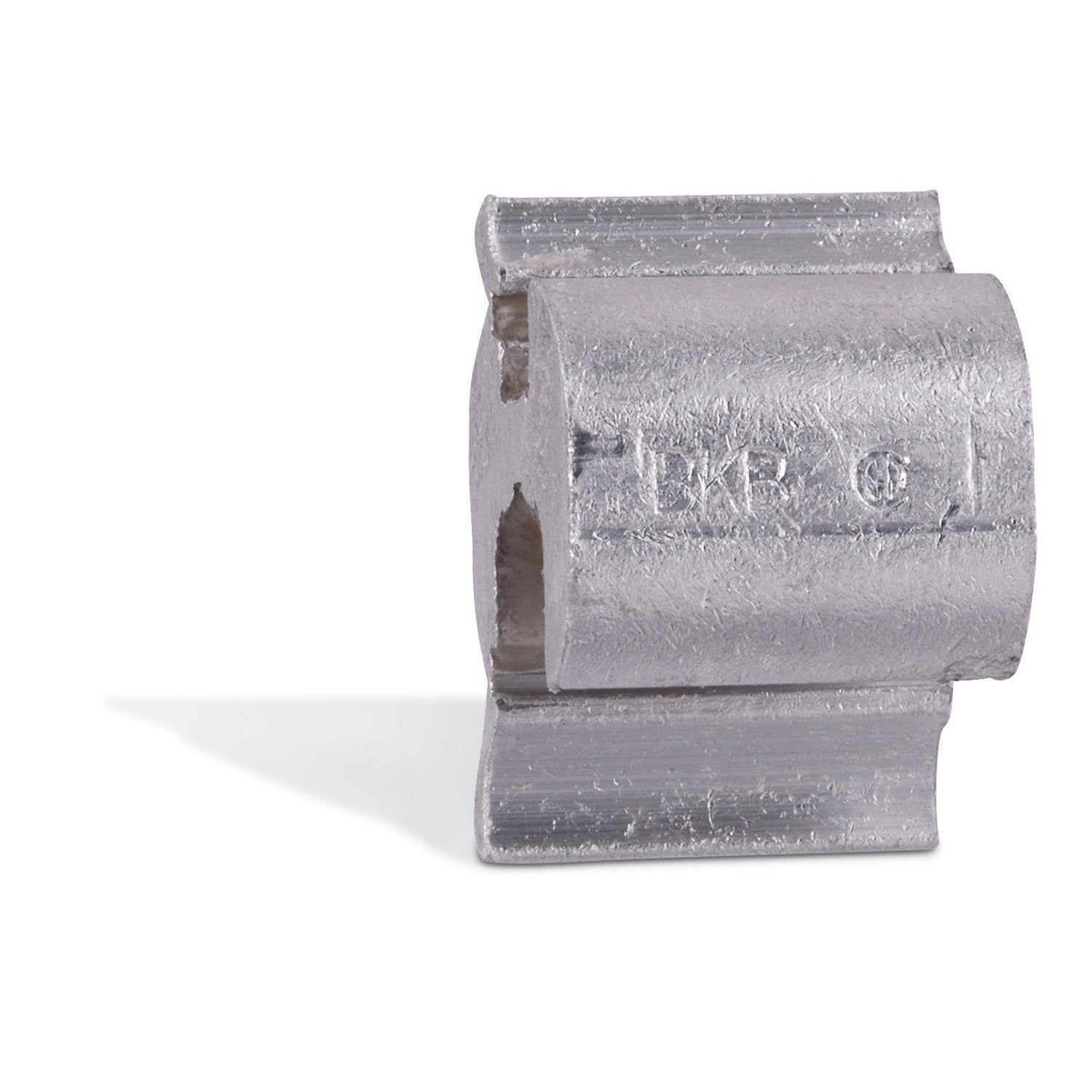

The Blackburn WR9 is a six to eight H tap connector, designed for connecting various types of conductors. This model is made from aluminum and fits into the category of compression connectors. It is well-suited for power applications requiring reliable connections between aluminum and copper conductors. The product complies with ANSI C119.4 specifications, ensuring its quality and reliability in electrical installations.
- Aluminum construction for improved conductivity
- Compatibility with multiple wire sizes: main and tap
- Standard compliance for safety and reliability
Product Highlights
Engineered for combinations of aluminum to aluminum and aluminum to copper conductors. Ideal for utility and industrial applications.
Product Information
Standard Information
-
Brand: Blackburn
-
Vendor: 378600
Technical Specifications
-
Type: H-Type Compression Tap Connector
-
Wire Size: Main: NO.3 to NO.6 ACSR or NO.2 to NO.6 STR or NO.1 to NO.4 SOL AWG; Tap: NO.8
-
Material: Aluminum
-
Standard: RUS Accepted, Complies with ANSI C119.4 Specifications
-
Temperature Rating: up to 90 C
-
Environmental Conditions: All Seasons / Conditions
-
Special Features: Made of 1350 Aluminum Alloy for high strength and high conductivity
-
Connection: Compression
