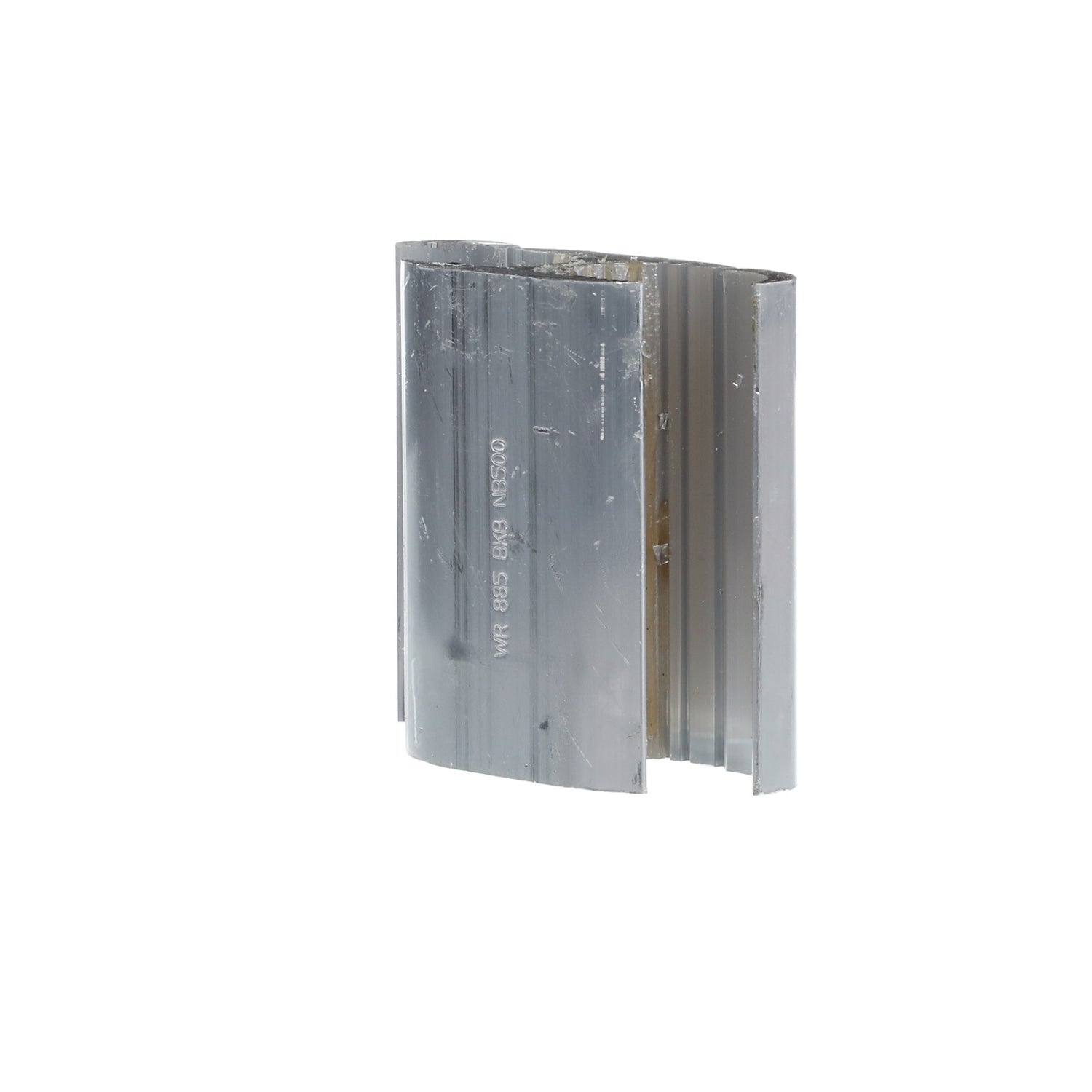

Blackburn WR885 AL HTYPE COMP CONN 477-4/0

Product Description

The Blackburn WR885 is an aluminum wide range H-type compression connector designed for various applications. It accommodates main wires ranging from 477 (eighteen one) to four aught ACSR or five hundred to four aught stranded American Wire Gauge. The connector is suitable for combinations of aluminum to aluminum and aluminum to copper conductors.

• Made from high strength 1350 aluminum alloy
• Complies with ANSI C119.4 specifications
• Temperature rating up to 90 degrees Celsius

Product Highlights

Durable and reliable for electrical connections in diverse environments.

Product Information

Standard Information

• Brand: Blackburn
• Manufacturer: Blackburn

Technical Specifications

• Type: H-Type Compression Tap Connector
• Wire Size: Main - 477 (18/1) to 4/0 ACSR; Tap - 477 (18/1) to 4/0 ACSR
• Length: 3 inches
• Weight: 1.88 pounds
• Material: Aluminum
• Number of Conductors: 2
• Environmental Conditions: All Seasons / Conditions
• Special Features: High strength and conductivity
• Temperature Rating: Up to 90 degrees Celsius
