Blackburn WR835 Compression Tap Connector H Type 4/0 AWG to 477 kcmil ACSR

Product Description

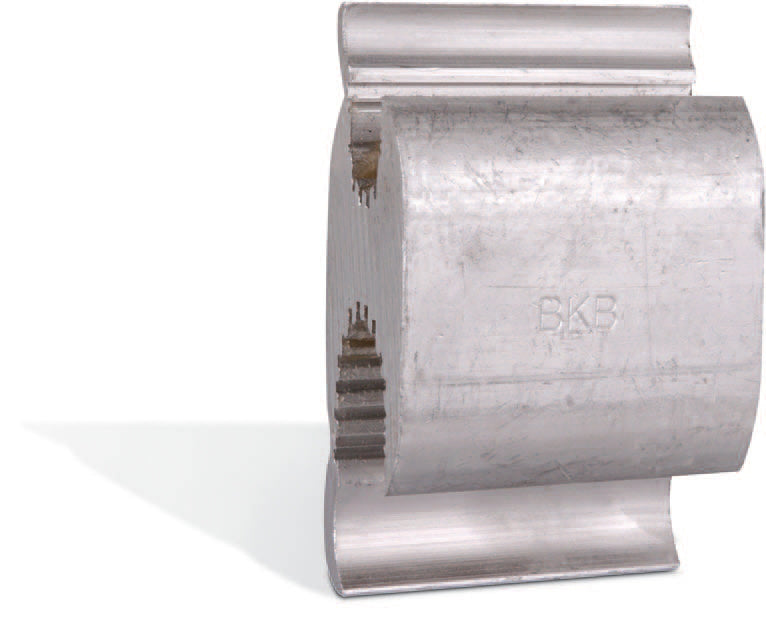

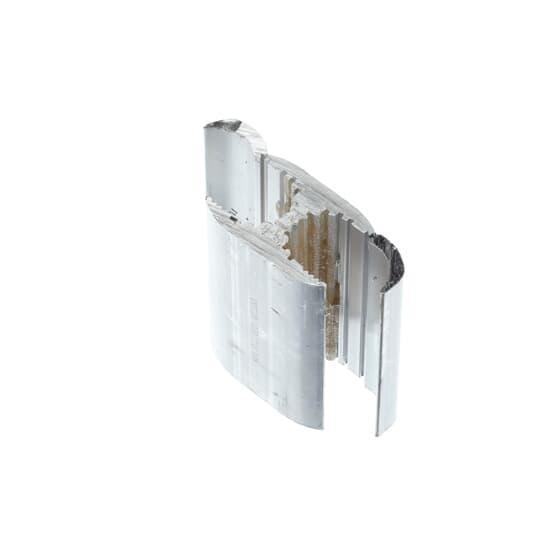

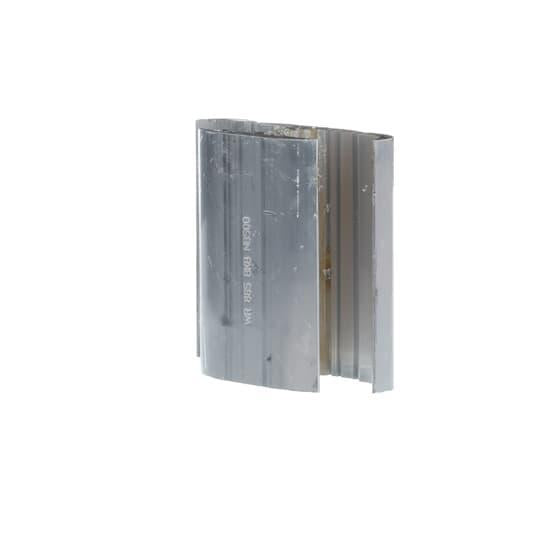

Blackburn WR835 is a compression tap connector made for various conductor types. This connector has an H shape and is suitable for multiple wire sizes. Its design allows connections for ACSR, stranded, and solid conductors.

• Made of 1350 aluminum alloy for strength and conductivity.
• Compatible with standard compression tools without requiring special equipment.
• Fold-in tabs ensure secure interlocking as the tool closes.

Product Highlights

The Blackburn WR835 is versatile and reliable for various electrical applications. It meets rigorous standards and provides safe and efficient connections in overhead and underground systems.

Product Information

Standard Information

• Brand: Blackburn
• Manufacturer: ABB

Technical Specifications

• Conductor Type: ACSR/Aluminum/Copper/Solid/Stranded
• Dimensions: 2 inches long
• Series: WR Series
• Specifications: N Die Code, 0.52 to 0.858 inches diameter for main conductor, 0.368 to 0.563 inches diameter for tap conductor, 2-conductor
• Temperature Rating: 90 degrees Celsius
• Type: Type H Wide Range
• Shape: H
• Main/Run Size: 4/0 AWG to 477 kcmil ACSR, 250 to 556 kcmil stranded
• Tap Size: 4/0 to 1/0 AWG ACSR, 4/0 to 1/0 AWG stranded, 4/0 to 2/0 AWG solid
• Material: Aluminum
