Product Description

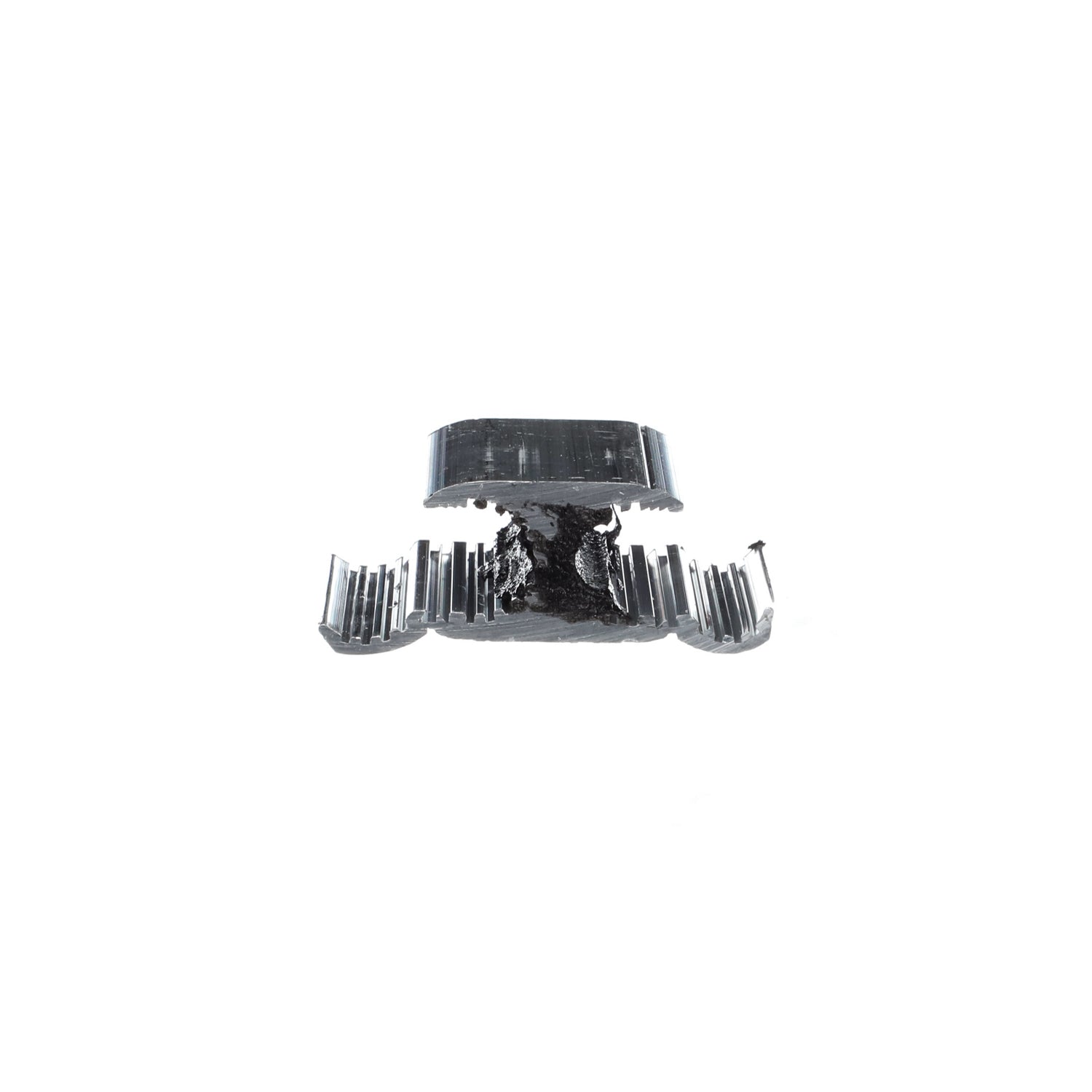

The Blackburn WR419 is a Type H Wide Range Compression Tap Connector designed for electrical applications. With a range of four/aught to three/aught American Wire Gauge (AWG) ACSR or stranded conductors, this connector provides reliable and efficient connections.
- Made of 1350 aluminum alloy for high strength and conductivity.
- Standard compression tools install all sizes; no special tools are required.
- Field-proven ribbed design ensures excellent connector/conductor contact.
Product Highlights
This connector is ideal for various wiring applications and offers durability and ease of installation.
Product Information
Standard Information
-
Brand: Blackburn
-
Manufacturer Part No: WR419
Technical Specifications
-
Type: Type H Wide Range
-
Shape: H
-
Wire Size: Main from 4/0 to 3/0 AWG ACSR; Tap from No. 2 to No. 6 ACSR
-
Dimensions: Length of two and three-sixteenths inches
-
Temperature Rating: Up to ninety degrees Celsius
-
Weight: sixteen point eight eight pounds
-
Conductor Type: ACSR, Aluminum, Copper, Solid, Stranded
-
Die Code: D, D3
