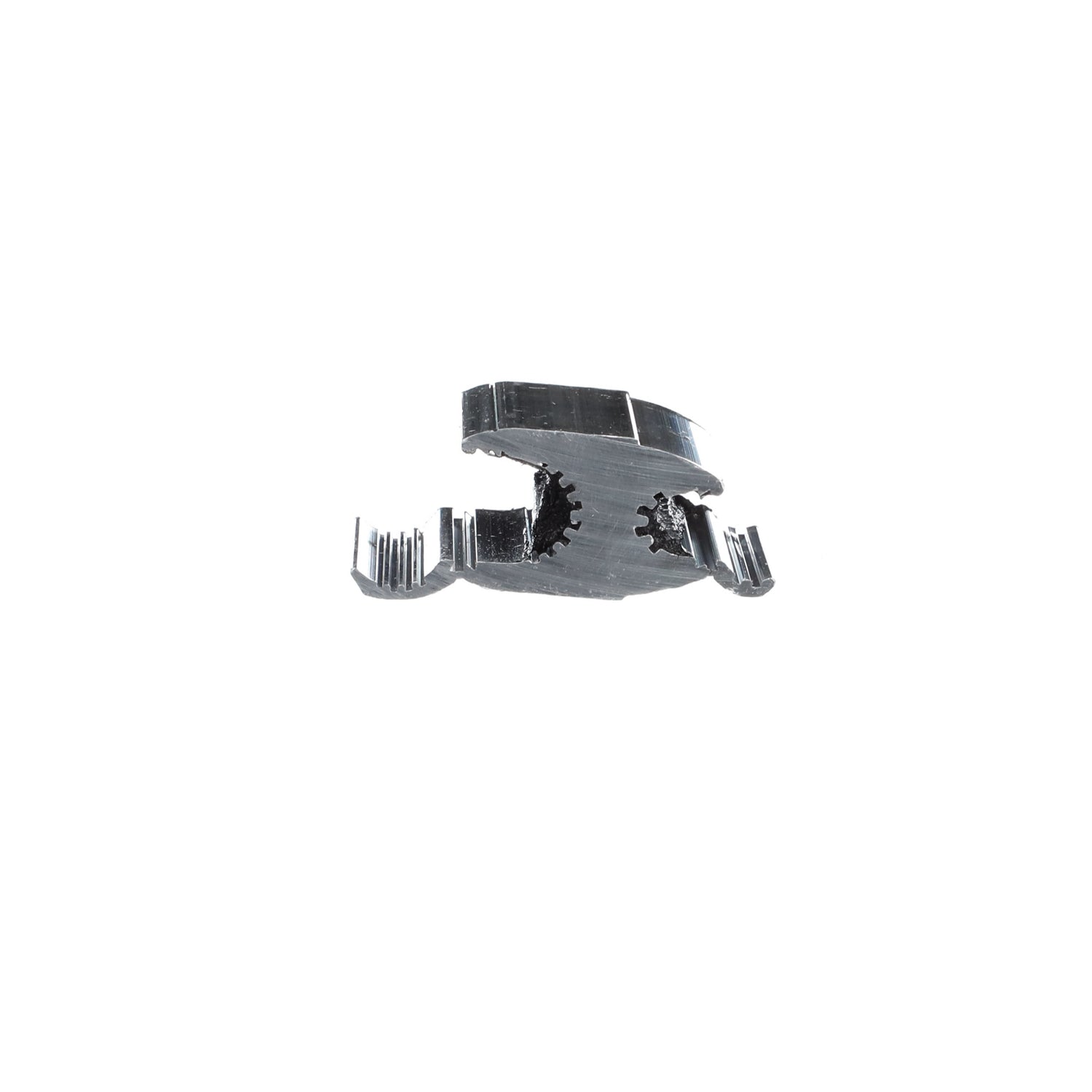

Blackburn WR379 AL HTYPE COMP CONN 4/0-3/0

Product Description

The Blackburn WR379 is an aluminum wide range H-type compression connector designed for various electrical applications. It connects main conductors of sizes 4/0 to 3/0 ACSR and offers tap connections for sizes ranging from No. 2 to No. 6 ACSR and No. 1 to No. 6 stranded conductors.

• Compatible with both aluminum and copper conductors
• Constructed from high-strength 1350 aluminum alloy for enhanced conductivity
• Accepted by RUS, complies with ANSI C119.4 specifications

Product Highlights

Ideal for applications involving combinations of aluminum to aluminum or aluminum to copper conductors.

Product Information

Standard Information

• Brand: Blackburn
• Model Number: WR379

Technical Specifications

• Type: H-Type Compression Tap Connector
• Material: Aluminum
• Weight: 3.13 lbs
• Length: 1-13/16 inches
• Wire Size: Main: 4/0 to 3/0 ACSR or 4/0 STR AWG; Tap: No. 2 to No. 6 ACSR or No. 1 to No. 6 STR
• Temperature Rating: Up to 90 °C
• Number of Conductors: 2
• Application: For combinations of aluminum to aluminum and aluminum to copper conductors
