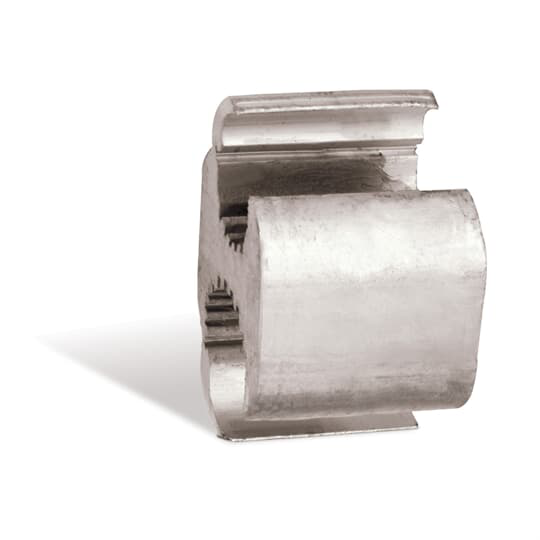

Blackburn WR319 Connector Tap Compression H AL D 2-COND

Product Description

Blackburn WR319 is a compression tap connector designed for high conductivity and strength. This type H wide range connector is suitable for use with 3/0 AWG ACSR or stranded main runs, and compatible with tap sizes ranging from 4 to 2 AWG ACSR. It is constructed from aluminum and features a ribbed design to ensure a secure connection without distorting the conductor.

• Made of 1350 aluminum alloy
• Standard compression tools install all sizes
• Field proven ribbed design

Product Highlights

The Blackburn WR319 offers a reliable solution for electrical connections. It meets diverse construction needs and is compatible with standard compression tools.

Product Information

Standard Information

• Brand: Blackburn
• Manufacturer: ABB - Installation Products

Technical Specifications

• Type: Type H Wide Range
• Shape: Figure H
• Series: WR Series
• Main Conductor Size: 3/0 AWG ACSR
• Tap Conductor Size: 4 to 2 AWG ACSR, 4 to 1 AWG stranded, 2 to 1 AWG solid
• Dimensions: 1-7/8 inches length
• Temperature Rating: 90 degrees Celsius
• Conductor Type: ACSR/Aluminum/Copper/Solid/Stranded
