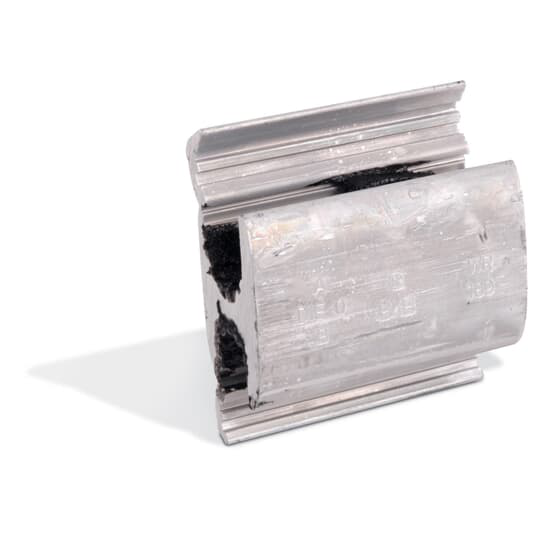

Blackburn WR279 Connector H-Tap Compression H AL D

Product Description

The Blackburn WR279 is a compression H-tap connector made for various conductor types. It accommodates sizes from two/aught to one AWG ACSR, three/aught to one/aught AWG stranded, and four/aught to two/aught AWG solid main/run conductors. This connector is designed for reliable electrical connections in overhead, grounding, and other applications.

• Made of 1350 aluminum alloy for strength and conductivity
• Standard compression tools work without special tools
• Ribbed design ensures excellent contact without conductor distortion

Product Highlights

This connector is field proven and easy to use, making it suitable for both professional and DIY applications.

Product Information

Standard Information

• Brand: Blackburn
• Manufacturer: ABB - Installation Products

Technical Specifications

• Type: Type WR Wide Range
• Shape: H
• Tap Size: 2/0 to 1 AWG ACSR, 3/0 to 1/0 AWG Stranded, 3/0 to 2/0 AWG Solid
• Dimensions: 1-13/16 inches long
• Conductor Type: ACSR/Aluminum/Copper/Solid/Stranded
• Temperature Rating: 90 degrees Celsius
• Compression Type: Crimp connection
• Die Code: D, D3
