Blackburn WR189 H-Tap Connector Wide Range Compression H-Tap Connector

Product Description

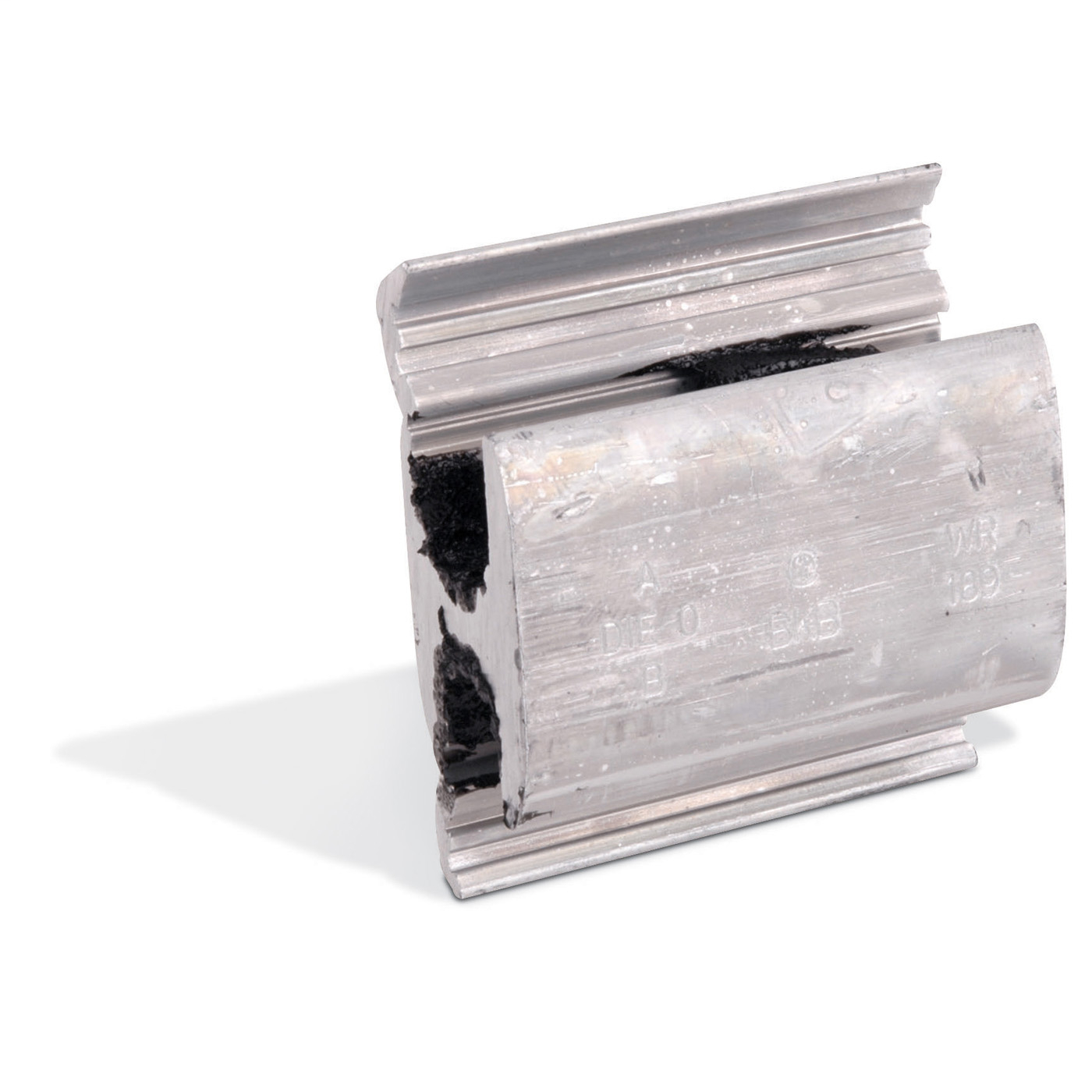

The Blackburn WR189 is a compression H-tap connector made of aluminum. It is designed for a wide range of applications in electrical systems. This connector accommodates various wire sizes and types, including ACSR, stranded, and solid conductors. It can handle main sizes from three to one AWG ACSR and tap sizes from six to two AWG ACSR. This makes it suitable for many installations.

• Designed for combination of aluminum to aluminum and aluminum to copper conductors.
• Uses standard compression tools for installation.
• Field-proven design to maintain connector integrity.

Product Highlights

This connector is ideal for integrating different types of conductors in power systems. It offers durability and reliability in various environmental conditions.

Product Information

Standard Information

• Brand: Blackburn
• Manufacturer Part No: WR189

Technical Specifications

• Type: WR Wide Range
• Shape: H
• Conductor Type: ACSR/Aluminum/Copper/Solid/Stranded
• Main Size: 3 to 1/0 AWG ACSR, 2 to 2/0 AWG Stranded, 3/0 to 1 AWG Solid
• Tap Size: 6 to 2 AWG ACSR, 6 to 1 AWG Stranded, 6 to 1/0 AWG Solid
• Dimensions: 1-11/16 inches Long
• Material: Aluminum
• Temperature Rating: 90 degrees Celsius
• Standards: ANSI C119.4|BAA Compliant|RUS Accepted
