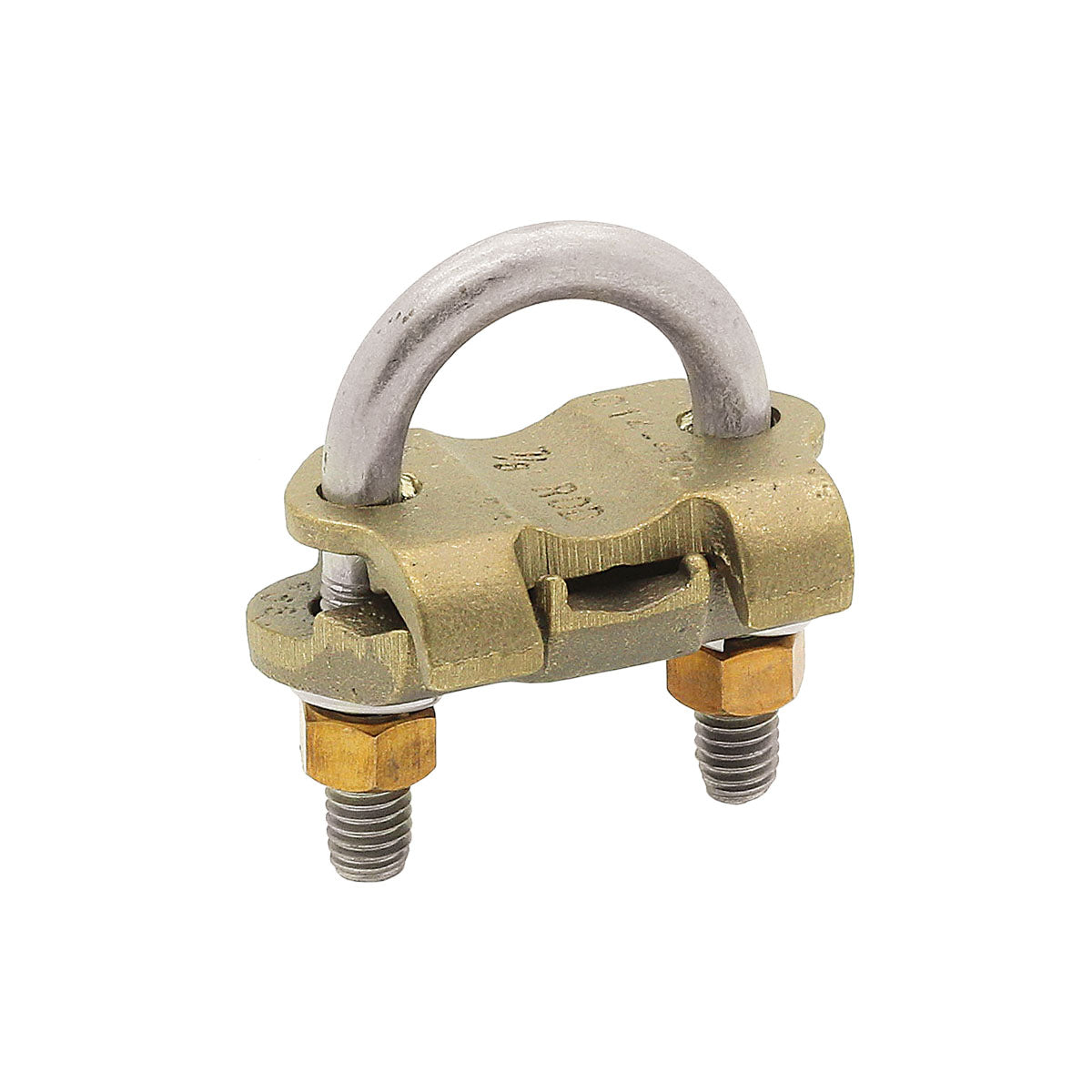

Blackburn GUV11821 1-1/8-1-1/4 GRD CMP

Product Description

The Blackburn GUV11821 is a copper ground clamp designed for secure grounding connections. This grounding product features a stainless steel U-bolt suitable for a wire range of four to two aught American Wire Gauge (AWG). With the capability to connect to rod sizes of one and one-eighth to one and one-quarter inches, it is a reliable choice for grounding applications.

• Material: Copper and stainless steel
• Wire range: 4 - 2/0 AWG
• Standard: UL E3060; CSA 12798

Product Highlights

This product is ideal for connecting copper or copper-clad steel grounding conductors to grounding rods or pipes.

Product Information

Standard Information

• Brand: Blackburn / EZGROUND
• Manufacturer: Blackburn

Technical Specifications

• Conductor Material: Copper
• Conductor Size: 4 - 2/0 AWG
• Rod Size: 1-1/8 - 1-1/4 inches
• IPS Pipe Size Max: 1 inch
• Length: 3-5/16 inches
• Width: 2-3/4 inches
• Depth: 1-9/16 inches
• Family Group: GROUNDING
