Product Description

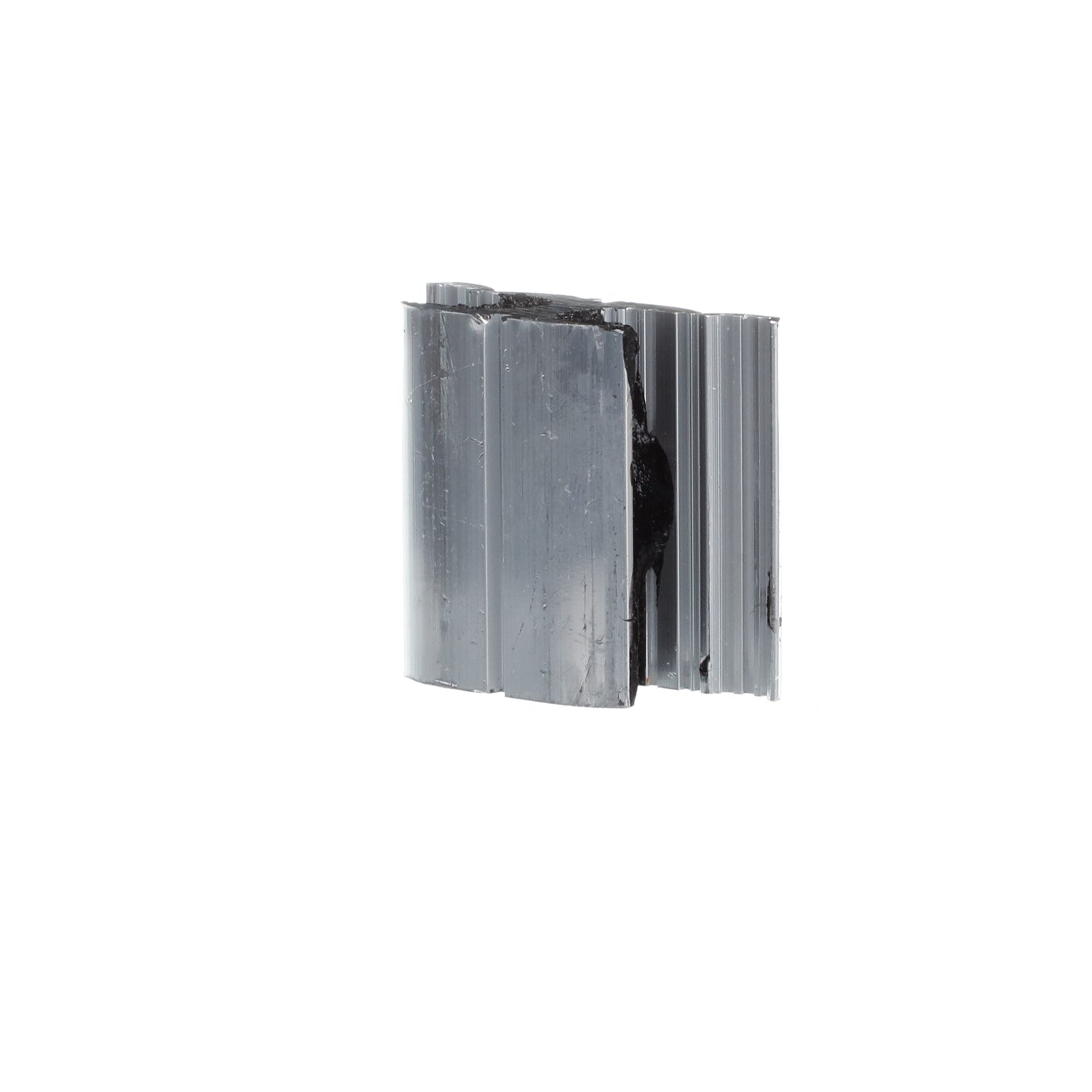

The Blackburn BKBNWR279 WR279 AL HTYPE COMPCONN is an aluminum wide range compression connector designed for various conductor sizes. This product accommodates main conductors from two/zero to one/zero ACSR or three/zero to one/zero stranded wire. It can also connect up to four/zero to two/zero solid wire for tap applications. This compression connector provides a reliable and efficient means to join aluminum conductors.
- Rated for use with various aluminum and copper conductor combinations
- Constructed from 1350 aluminum alloy for high strength and conductivity
- Complies with ANSI C119.4 specifications and is RUS accepted
Product Highlights
This connector is ideal for applications requiring robust connections in electrical systems.
Product Information
Standard Information
-
Brand: Blackburn
-
MPN: BKBNWR279
Technical Specifications
-
Material: Aluminum
-
Weight: 36.25
-
Type: H-Type Compression Tap Connector
-
Size: Length one and thirteen/sixteen inch
-
Connection: Compression
-
Application: For combinations of aluminum to aluminum and aluminum to copper conductors
-
Temperature Rating: Up to ninety degrees Celsius
-
Number of Conductors: Two
-
Environmental Conditions: All seasons/conditions
