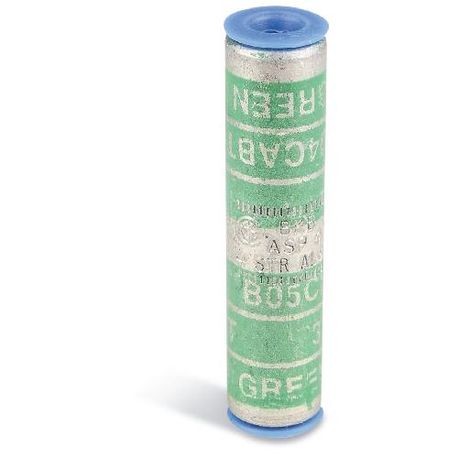

Blackburn ASP30 CONNECTOR SPLC COMPRESSION 3/0AWG AL CRP

Product Description

The Blackburn ASP30 is a standard barrel compression splice connector designed for 3/0 AWG stranded aluminum or copper conductors. It features a length of two and seven-eighths inches and is made from high-conductivity aluminum with a tin-plated finish.

• Designed for use with 3/0 AWG stranded aluminum/copper.
• Suitable for medium voltage applications up to 35 kV.
• Color-coded for easy identification and installation.

Product Highlights

This product is made from seamless aluminum tubing and is pre-filled with an oxide inhibiting compound. The connector is chamfered at both ends to facilitate installation, ensuring reliable electrical connections.

Product Information

Standard Information

• Brand: Blackburn
• Manufacturer Part No: ASP30

Technical Specifications

• Type: Standard Barrel
• Color: Ruby
• Finish: Tin Plated
• Length: 2-7/8 inches
• Series: ASP
• Conductor Size: 3/0 AWG
• Conductor Type: Stranded Aluminum/Copper
• Connector Type: Crimp
• Voltage Rating: 35 kV
