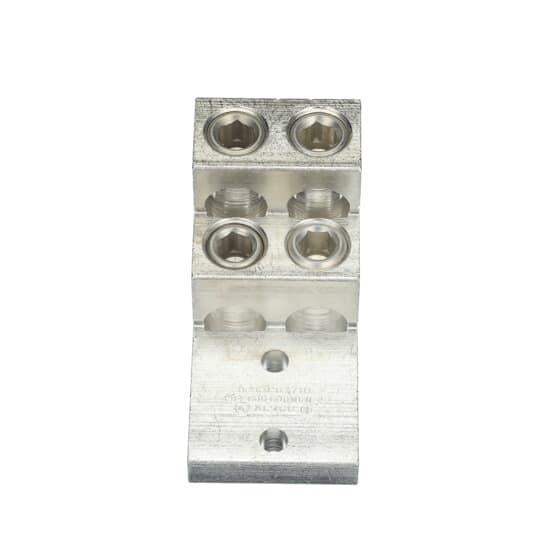

Blackburn ASL60-42 CONNECTOR MECH AL/STRD COPPER 13/32IN

Product Description

The Blackburn ASL60-42 is a mechanical connector designed for dual-rated applications. It accommodates conductor sizes from 2 AWG to six hundred kcmil. The connector supports aluminum and stranded copper conductors and is equipped with a thirteen thirty-second inch stud.

• Easy installation - no special tools required
• Tin plated for low contact resistance
• Two bolt holes for secure attachment

Product Highlights

The ASL60-42 provides reliable connections in various electrical projects. It is suitable for both residential and commercial applications where strong mechanical connections are essential.

Product Information

Standard Information

• Brand: Blackburn
• Manufacturer: ABB - Installation Products

Technical Specifications

• Type: ASL-ALCUL Dual Rated
• Conductor Size: 2 AWG to 600 kcmil
• Conductor Type: Aluminum/Stranded Copper
• Stud Size: 13/32 In
• Number of Bolt Holes: 2
• Tongue Size: 2-1/2 In W x 3/4 In THK
• Tongue Type: Straight
• Dimensions: 4-29/32 In L x 2-1/2 In W x 3 In H
