Product Description

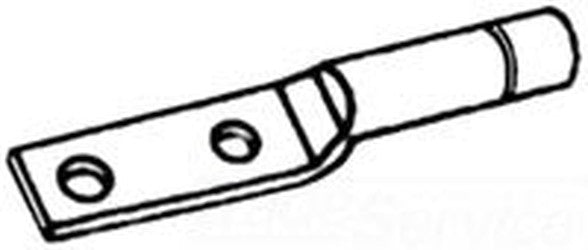

The Blackburn AL12 Compression Lug is a reliable choice for connecting aluminum or copper conductors, rated for use with four/0 AWG wire. This lug simplifies installations and provides robust performance in various electrical applications.
- Compatible with aluminum and copper conductors.
- Features NEMA standard mounting holes.
- Extended barrel allows for additional crimping area.
Product Highlights
This compression lug is prefilled with oxide inhibitor to enhance protection and ensure a durable connection.
Product Information
Standard Information
-
Manufacturer: Blackburn
-
Material: Oxide Coated Aluminum
Technical Specifications
-
Conductor Size: 4/0 AWG
-
Stud Size: 1/2 Inch
-
Type: Long Barrel
-
Number of Pad Holes: 2 NEMA
-
Pad Size: 1-1/4 Inch W x 9/32 Inch Thick
-
Die Index: 840/K840/845/TX (Mechanical)
-
UPC: 783786047284
