Blackburn AJ-2124 Clamp Grounding Pipe WTR AL 2-1/2 to 4in

Product Description

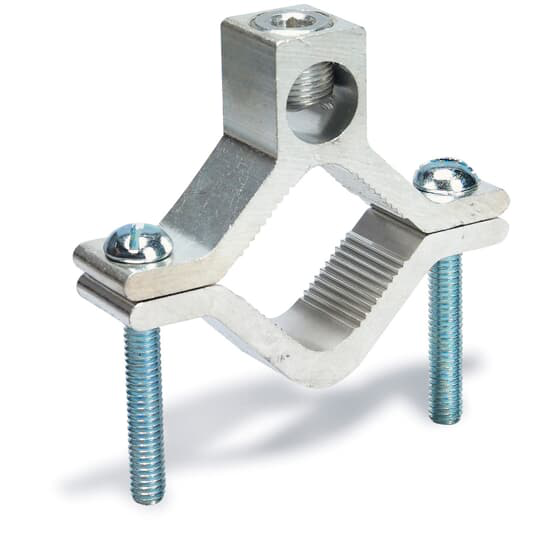

The Blackburn AJ-2124 is a grounding clamp designed for use on water pipes ranging from two and one-half inches to four inches. This dual-rated clamp accommodates conductors from six AWG to two hundred fifty kcmil. It features a robust aluminum construction suitable for both aluminum and copper conductors. The clamp is also TiN coated, enhancing its durability and performance in various environments.

• Fits water pipes from two and one-half inches to four inches.
• Compatible with six AWG to two hundred fifty kcmil conductors.
• Constructed from aluminum with a TiN coating for enhanced durability.

Product Highlights

This clamp is ideal for establishing a reliable grounding system in electrical installations. It offers easy installation and ensures a solid connection for grounding applications.

Product Information

Standard Information

• Brand: Blackburn
• Manufacturer Part No: AJ-2124

Technical Specifications

• Type: Dual Rated
• Pipe Size: 2-1/2 to 4 inches
• Conductor Size: 6 AWG to 250 kcmil
• Conductor Type: Aluminum/Copper
• Finish: TiN Coated
• Dimensions: 6-5/16 inches W x 7/8 inches D x 5-9/16 inches H
• Weight: 68.5 lbs
