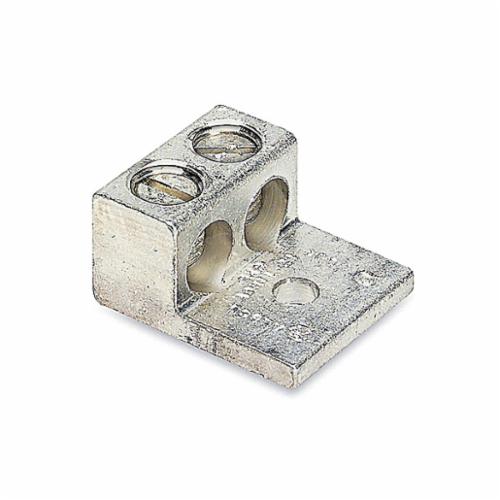

Blackburn ADR80-21 Connector Mech Al/Copper 300 to 800 KCMIL

Product Description

The Blackburn ADR80-21 is a mechanical connector designed for aluminum and copper conductors ranging from three hundred to eight hundred kcmil. It features a dual-rated design, making it suitable for various applications. The connector requires no special tools for installation, simplifying the setup process.

• Compatible with both aluminum and copper conductors
• Easy installation with no special tools required
• Tin-plated for low contact resistance

Product Highlights

The Blackburn ADR80-21 offers reliability and versatility for electrical connections, ensuring high performance in demanding environments.

Product Information

Standard Information

• Brand: Blackburn
• MPN: ADR80-21

Technical Specifications

• Conductor Size: 300 to 800 kcmil
• Stud Size: 5/8 in
• Number of Conductors: 2
• Dimensions: 3-3/8 in L x 3-3/16 in W x 1-15/16 in H
• Tongue Size: 1-3/4 in L x 3-3/16 in W x 1/2 in THK
• Tongue Type: Straight
• Material: Aluminum
• Finish: Tin Plated
• Number of Bolt Holes: 1
