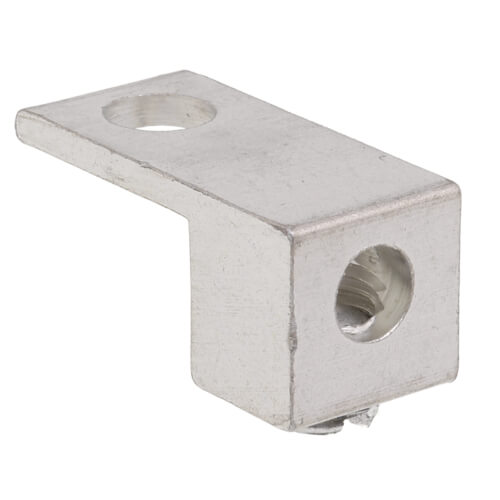

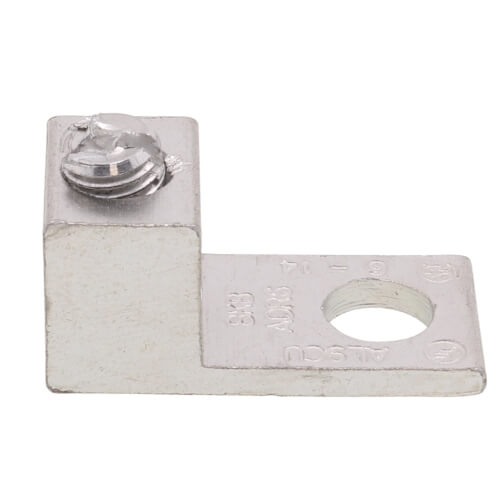

Blackburn ADR6 connector mech al/strd copper 14 to 6awg

Product Description

The Blackburn ADR6 is a mechanical connector designed for dual-rated use with aluminum and stranded copper conductors. It supports conductor sizes from fourteen to six AWG, making it versatile for various electrical applications. The connector features one-quarter inch stud and a slotted screw for secure fastening.

• Easy installation with no special tools required
• Tin plated for low contact resistance
• Designed for use with aluminum and stranded copper conductors

Product Highlights

Blackburn's ADR6 provides reliable mechanical connections for electrical installations. It meets UL standards and is suitable for various electrical systems.

Product Information

Standard Information

• Brand: Blackburn
• Manufacturer: ABB - Installation Products

Technical Specifications

• Type: Type ADR-ALCUL Dual-Rated
• Conductor Size: 14 to 6 AWG
• Stud Size: 1/4 in
• Dimensions: 1-3/64 in L x 1/2 in W x 31/64 in H
• Tongue Size: 43/64 in L x 1/2 in W x 5/64 in THK
• Voltage Rating: 600 VAC
• Number of Bolt Holes: 1
