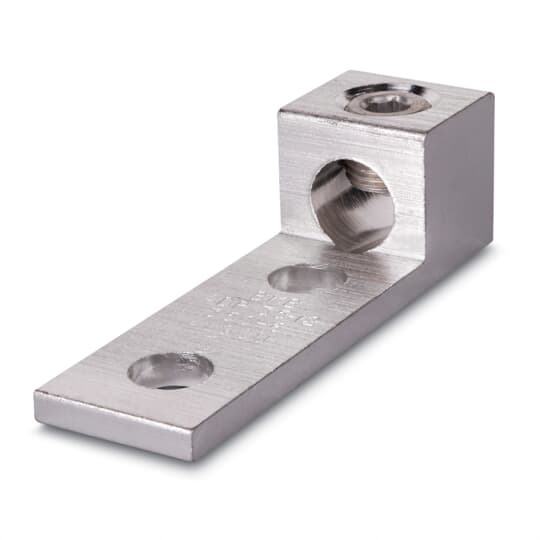

Blackburn ADR35-12 Mechanical Connector - Dual Rated for 6 AWG to 350 kcmil - 1/2 in Stud - 2 Bolt Holes

Product Description

The Blackburn ADR35-12 is a mechanical connector designed for aluminum and stranded copper conductors. It accommodates wire sizes from six AWG to three hundred fifty kcmil. This connector features a half-inch stud and two bolt holes for secure attachment.

• Easy installation with no special tools required.
• NEMA spacing of one and three-quarter inches centers.
• Constructed from aluminum and tin-plated for low contact resistance.

Product Highlights

The ADR35-12 is ideal for electrical applications that require reliable connections in various environments.

Product Information

Standard Information

• Brand: Blackburn
• Manufacturer Part No: ADR35-12

Technical Specifications

• Type: Dual-Rated Mechanical Connector
• Conductor Size: 6 AWG to 350 kcmil
• Stud Size: 1/2 in
• Bolt Holes: 2
• Dimensions: 4-1/4 in L x 1-1/4 in W x 1-3/8 in H
• Tongue Size: 3 in L x 1-1/4 in W x 5/16 in THK
• Tongue Type: Straight
• Finish: Tin Coated
• Country of Origin: Mexico
