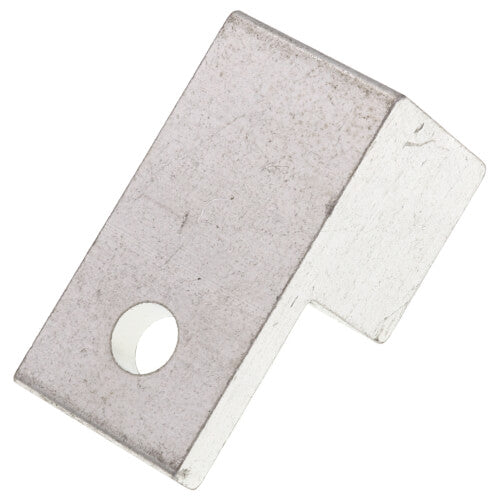

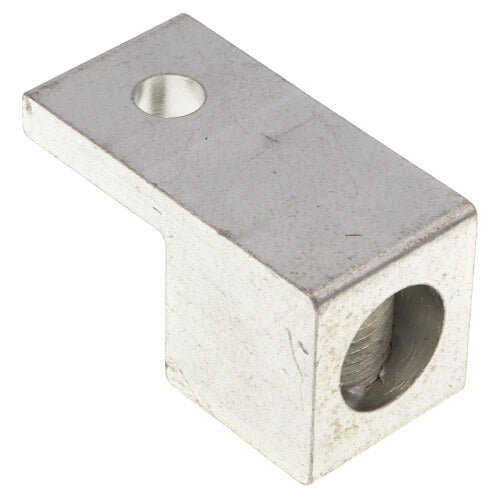

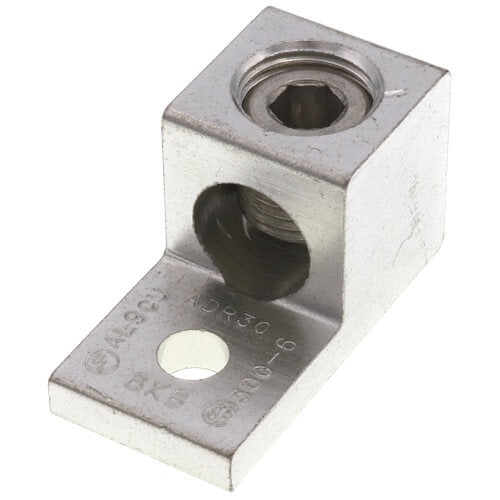

Blackburn ADR30 Connector Mech Al/Strd Copper 5/16 in

Product Description

Blackburn ADR30 is a mechanical lug designed for dual-rated applications with aluminum and stranded copper conductors. This connector supports wire sizes ranging from six AWG to three hundred kcmil and has a stud size of five-sixteenths inches. It is suitable for use in various electrical installations.

• Easy installation without special tools required
• Tin plated to reduce contact resistance
• Includes an additional aluminum lug

Product Highlights

This product is ideal for connecting aluminum and copper wire in electrical systems. Its robust design allows for reliable connections.

Product Information

Standard Information

• Brand: Blackburn
• Manufacturer Part No: ADR30

Technical Specifications

• Type: Type ADR-ALCUL Dual-Rated
• Finish: Tin Plated
• Stud Size: 5/16 in
• Dimensions: 2 in L x 1 in W x 1-1/8 in H
• Conductor Size: 6 AWG to 300 kcmil
• Conductor Type: Aluminum/Stranded Copper
• Voltage Rating: 600 VAC
• Number of Bolt Holes: 1
