Product Description

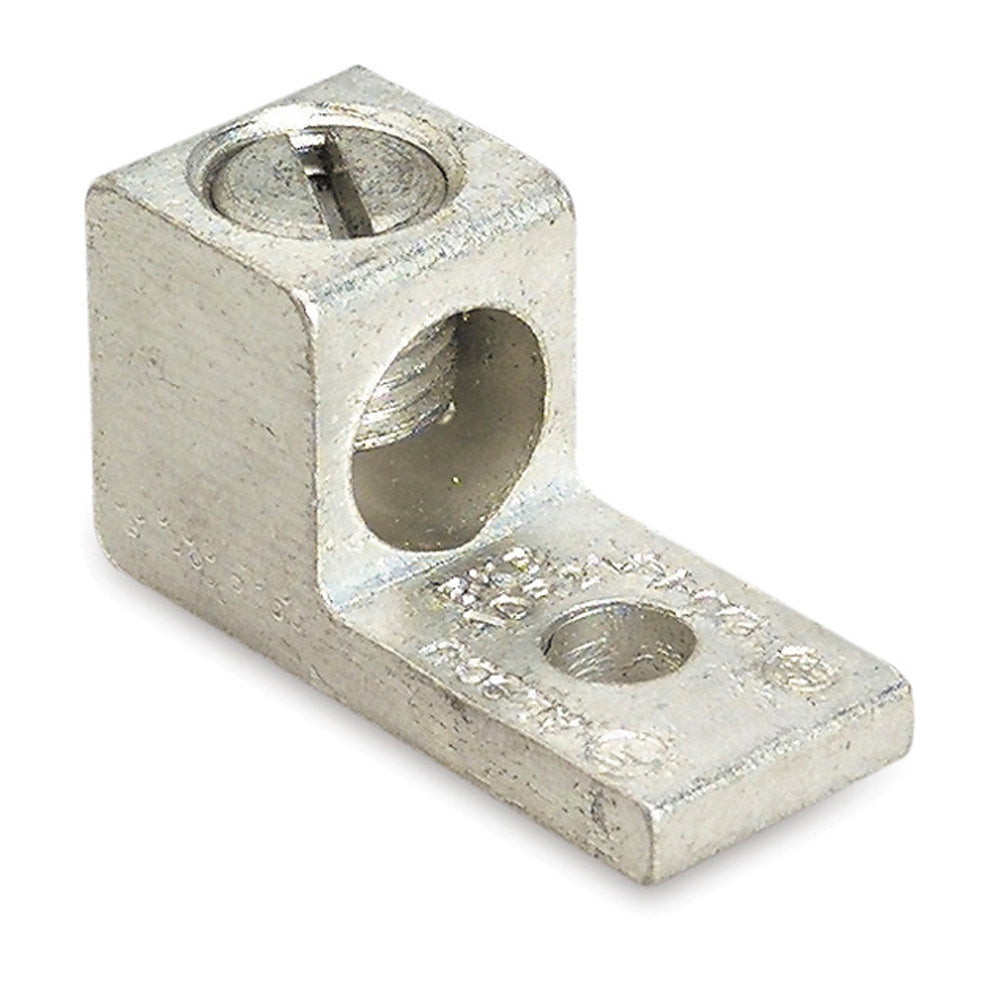

The Blackburn ADR25 is a dual-rated mechanical lug designed for aluminum and stranded copper conductors. The lug accommodates conductor sizes ranging from six AWG to two hundred fifty kcmil. It features a five-sixteenth inch stud and is built for straightforward installations without the need for special tools.
- Tin plated for low contact resistance
- Easy installation - no special tools required
- Compatible with socket screws for sizes ranging from two hundred fifty to three hundred fifty kcmil
Product Highlights
This product provides reliable electrical connections suitable for diverse applications in residential and commercial settings. It supports UL and CSA standards for safety and performance.
Product Information
Standard Information
-
Brand: Blackburn
-
Manufacturer: ABB - Installation Products
Technical Specifications
-
Type: Dual-Rated Mechanical Connector
-
Conductor Size: 6 AWG to 250 kcmil
-
Stud Size: 5/16 in
-
Voltage Rating: 600 VAC
-
Finish: Tin Plated
-
Dimensions: 2 in L x 1 in W x 1-1/8 in H
-
Number of Bolt Holes: 1
-
Material: Aluminum
