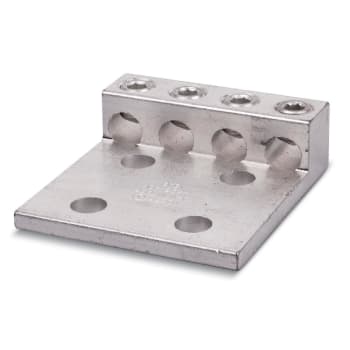

Blackburn ADR25-44 Connector Mech Al/Strd Copper 1/2 In 4 Al

Product Description

The Blackburn ADR25-44 is a dual-rated mechanical lug designed for use with aluminum and stranded copper conductors. This connector accommodates conductor sizes ranging from six AWG to 250 kcmil and features a half-inch stud size with four bolt holes for secure mounting.

• Easy installation with no special tools required.
• Tin plated for low contact resistance.
• Designed to accommodate larger conductors with double rows of set screws.

Product Highlights

Blackburn's mechanical lugs provide reliable connections for various electrical applications, ensuring high performance and versatility.

Product Information

Standard Information

• Brand: Blackburn
• Manufacturer: ABB - Installation Products

Technical Specifications

• MPN: ADR25-44
• Type: ADR-ALCUL Dual-Rated
• Conductor Size: 6 AWG to 250 kcmil
• Conductor Type: Aluminum/Stranded Copper
• Stud Size: 1/2 in
• Number of Bolt Holes: 4
• Tongue Size: 3 in L x 4-1/16 in W x 5/16 in THK
• Tongue Type: Straight
• Dimensions: 4 in L x 4-1/16 in W x 1-3/16 in H
• Hole Spacing: 1-3/64 in
