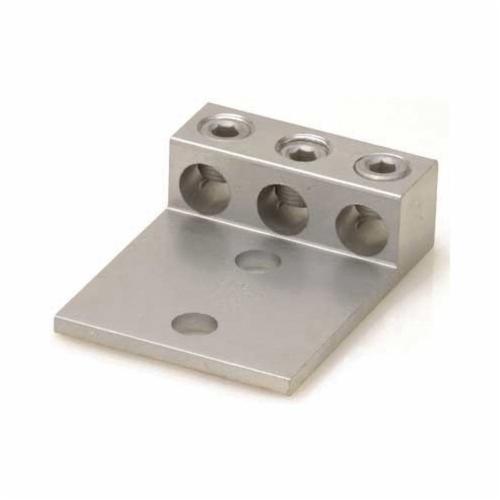

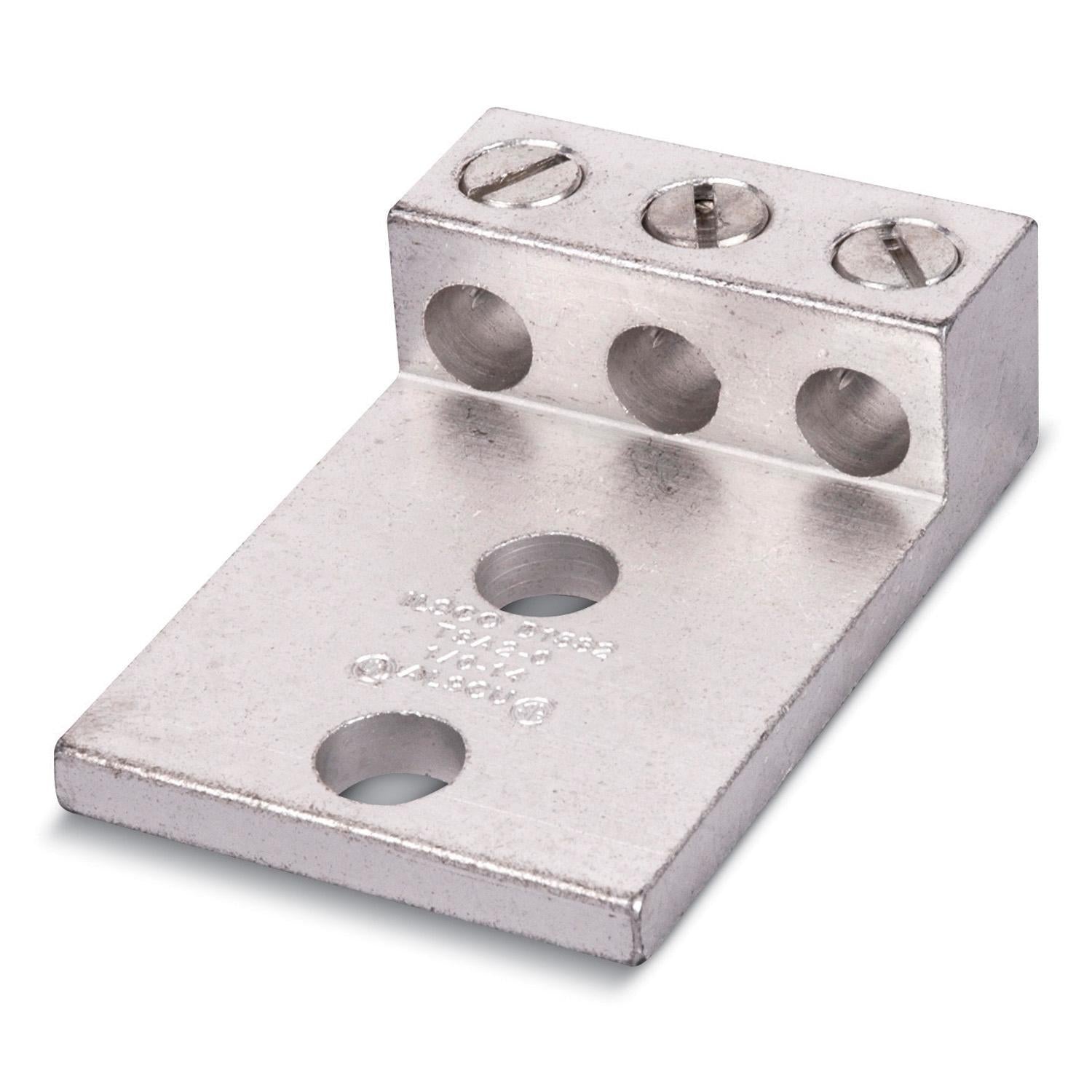

Blackburn ADR11-32 ADR-ALCUL Dual Rated Mechanical Connector 14 to 1/0 AWG

Product Description

The Blackburn ADR11-32 is a mechanical connector designed for dual-rated applications. It accommodates Aluminum and Stranded Copper conductors from fourteen to one aught AWG. The connector features a three-eighth inch stud and two bolt holes for secure attachment.

• Fits conductors from fourteen to one aught AWG
• Includes two bolt holes for secure installation
• Tin plated for improved contact resistance

Product Highlights

Ideal for various electrical installations, this mechanical connector ensures reliable connectivity in demanding environments.

Product Information

Standard Information

• Brand: Blackburn
• Manufacturer: ABB

Technical Specifications

• Conductor Size: 14 to 1/0 AWG
• Stud Size: 3/8 in
• Number of Bolt Holes: 2
• Tongue Size: 2-5/32 in L x 1-15/16 in W x 1/4 in THK
• Tongue Type: Straight
• Type: ADR-ALCUL Dual Rated
• Material: Aluminum
• Finish: Tin Plated

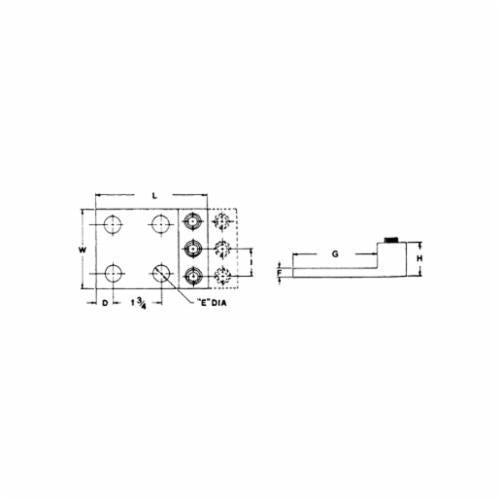

• Dimensions: 2-29/32 in L x 1-15/16 in W x 7/8 in H
• Specifications: 3-Conductor, 45/64 in Hole Spacing
