Product Description

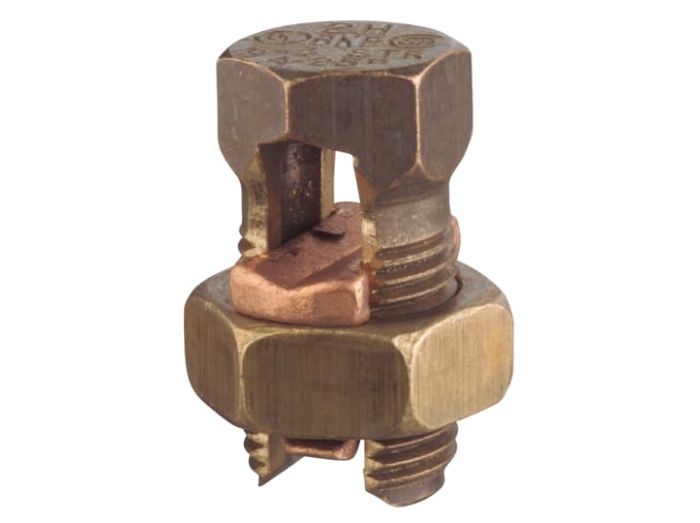

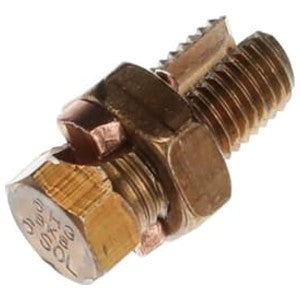

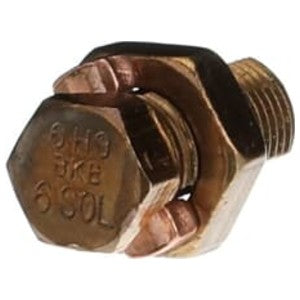

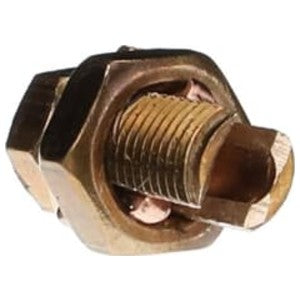

The BLACKBURN 6H3 is a high-strength split-bolt connector with a bolt and nut made of corrosion-resistant bronze alloy. It features a copper pressure bar and a hex design. Designed for splicing, tapping, or terminating conductors in power and grounding electrical connections. It accommodates tap conductor sizes from 6 Sol to 10 Sol.
- High strength Split-Bolt Connector
- Bolt and nut of high-strength corrosion-resistant bronze alloy
- Copper pressure bar
Product Highlights
High-strength split-bolt connector made of bronze alloy with a copper pressure bar, suitable for copper conductors.
Product Information
Standard Information
-
Brand: BLACKBURN
-
Manufacturer Part Number: 6H3
-
Country of Origin: Mexico
Technical Specifications
-
ECCN: EAR99
-
Country of Origin: Mexico
-
UNSPSC: 39121408
-
Tap Conductor Size: 6 Sol to 10 Sol
-
Type: Split Bolt
-
Installation: Hex Head Split Bolt
-
Conductor Material: Copper
-
Minimum Run Conductor Size: 10 AWG Solid
-
Maximum Run Conductor Size: 6 AWG Solid
-
Minimum Tap Conductor Size: 16 AWG Stranded, 10 AWG Solid
-
Maximum Tap Conductor Size: 6 AWG Solid
-
Material: Corrosion Resistant High Strength Bronze Alloy Bolt/Nut, Copper Pressure Bar
-
Approval: UL, CSA
-
Category: Mechanical connectors
-
Special Features: Bolt and nut of high-strength corrosion-resistant bronze alloy. Copper pressure bar. Bolt and nut of hex design.
-
Application: Splicing, tapping or terminating conductors in power and grounding electrical connection.
-
Standard: UL E9809
-
Compliance and Certifications: RoHS, RoHS3 Compliant
-
REACH: REACH 247 Compliant
-
TSCA: TSCA Section 6(h) Compliant
-
Suitable for: Round conductor
-
Manufacturer Part Number: 6H3
-
Manufacturer: Blackburn, a T & B Brand
-
Product Series: H
-
Family Series: Blackburn, a T & B Brand Connectors, H Series
-
Description: Type H High Strength Split-Bolt Connector made of Bronze Alloy for Use on Copper Conductors. Conductor Range for Equal Main and Tap 6 Sol.-10 Sol.
-
Style: Split Bolt
-
Composition: Bronze
-
Cond. Equal Main/Tap: 6 sol.-10 sol.
-
Cond. Max Main/Min Tap: 16 str.
-
Approvals: CSA, UL
