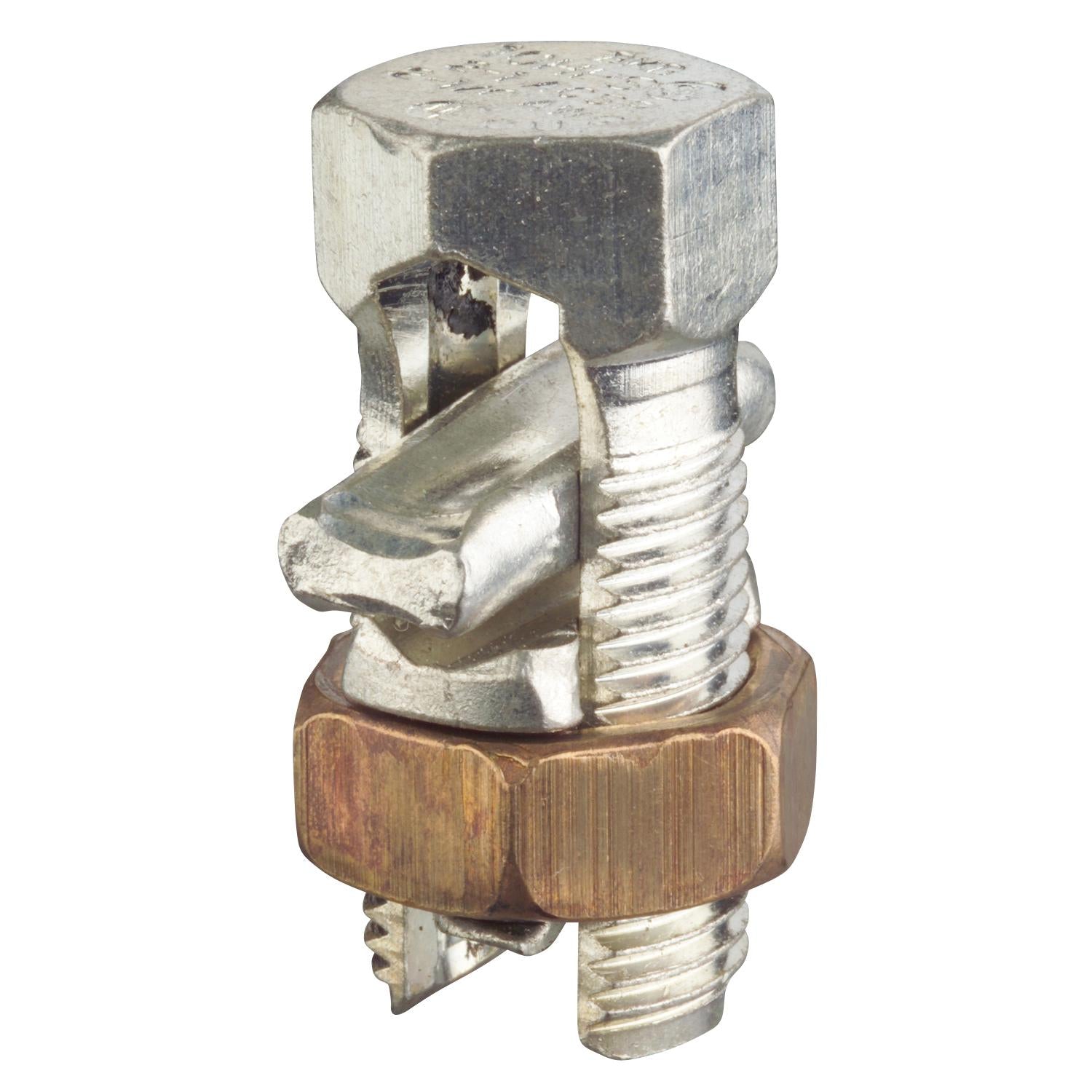

Blackburn 4HPS 4HPS CONNECTOR BOLT SPLIT ACSR/SOL AL/COPPER

Product Description

The Blackburn 4HPS connector is designed for connecting ACSR and solid aluminum or copper conductors. This connector supports wire sizes ranging from twelve to four AWG, making it versatile for various applications in the electrical field.

• Constructed from copper alloy for durability.
• Electro-plated tin finish enhances corrosion resistance.
• Recommended for use with aluminum conductors for optimal performance.

Product Highlights

This split bolt connector features a contoured spacer designed to secure the connection while minimizing wire damage. It is also compatible with multiple wire types and sizes, suitable for a wide range of electrical installations.

Product Information

Standard Information

• Brand: Blackburn
• Manufacturer: ABB - Installation Products

Technical Specifications

• Type: HPS
• Conductor Size: 12 to 4 AWG
• Conductor Type: ACSR/Solid Aluminum/Copper
• Bolt Size: 17/32 x 1-9/32 in
• Split Size: 0.235 in
• Hex Nut Size: 23/32 in
• Weight: 8.69 lb
• Finish: Electro-Plated Tin
