Product Description

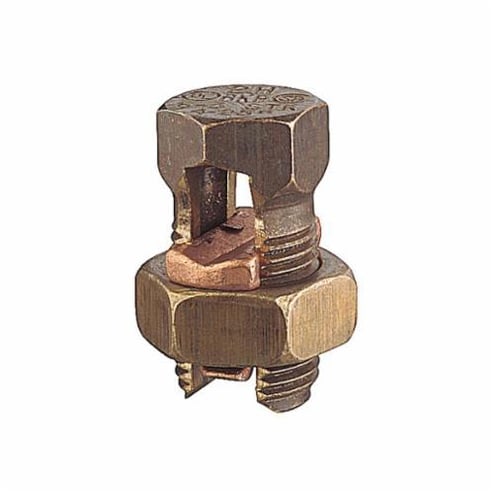

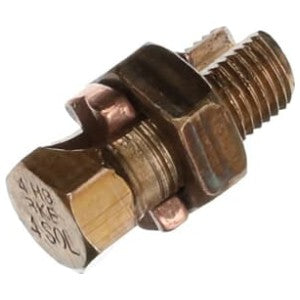

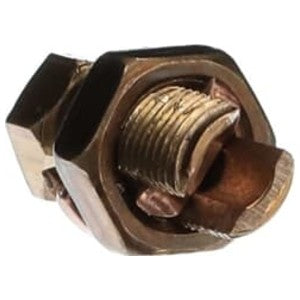

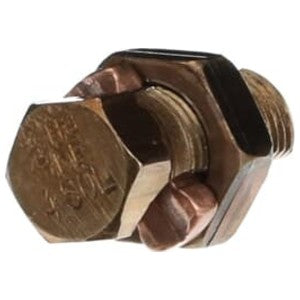

The BLACKBURN 4H3 split bolt is made from bronze alloy with a tin finish. It accommodates a tap conductor size of 16 Str AWG, 4 Sol to 8 Sol AWG. This split bolt connector is suitable for splicing, tapping, or terminating conductors in power and grounding electrical connections.
- Corrosion-resistant high-strength bronze alloy bolt and nut
- Copper pressure bar
- Hex design bolt and nut
Product Highlights
The BLACKBURN 4H3 split bolt is ideal for use on copper conductors, with a conductor range for equal main and tap of 4 Sol-8 Sol.
Product Information
Standard Information
-
Brand: BLACKBURN
-
Manufacturer Part Number: 4H3
-
Country of Origin: Mexico
Technical Specifications
-
ECCN: EAR99
-
Country of Origin: MX - Mexico
-
UNSPSC: 39121408
-
Insulation Material: Tin
-
Tap Conductor Size: 16 Str AWG, 4 Sol to 8 Sol AWG
-
Type: Split Bolt
-
Installation: Hex Head Split Bolt
-
Conductor Material: Copper
-
Minimum Run Conductor Size: 8 AWG Solid
-
Maximum Run Conductor Size: 4 AWG Solid
-
Minimum Tap Conductor Size: 16 AWG Stranded, 8 AWG Solid
-
Maximum Tap Conductor Size: 4 AWG Solid
-
Material: Corrosion Resistant High Strength Bronze Alloy Bolt/Nut, Copper Pressure Bar
-
Approval: UL, CSA
-
Category: Mechanical connectors
-
Standard: UL E9809
-
RoHS: RoHS3 Compliant
-
REACH: REACH 247 Compliant
-
TSCA: TSCA Section 6(h) Compliant
-
ETIM: EC000491 Earth terminal clamp
-
Suitable for: Round conductor
-
Conductor Size: 16 AWG, 8 to 4 AWG
-
Conductor Type: Solid, Stranded
-
Bolt Size: 17/32 in
-
Brand: ABB
-
Sub Brand: Blackburn®
-
12-Digit UPC: 783786200078
-
Product UPC: 78378620007
-
BABA Compliant: No
