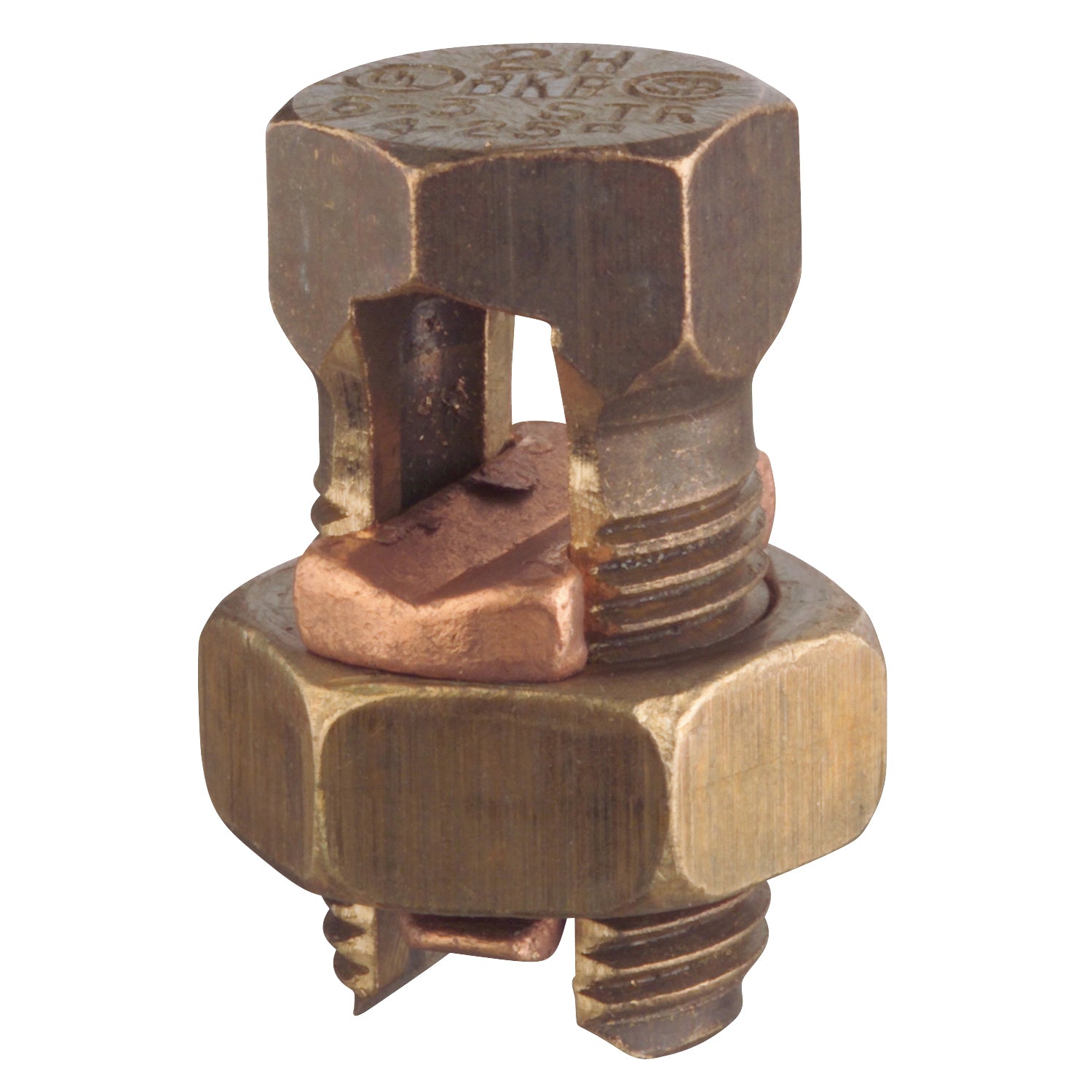

Blackburn 4H Connector Bolt Split Sol Copper Brz Aly

Product Description

The Blackburn 4H Connector Bolt is designed for effective splicing and tapping in electrical setups. With a solid copper conductor range from eight to four AWG, this connector is ideal for high-strength applications. The integrated design includes a bolt and nut made from a corrosion-resistant bronze alloy, ensuring durability and reliability. This connector provides a robust solution for both main and tap conductors, meeting standard electrical codes.

• Corrosion-resistant bronze alloy construction.
• Compatible with copper conductors, providing secure connections.
• UL listed for safety and reliability.

Product Highlights

Reliable for electrical applications requiring strong connections between conductors, the Blackburn 4H is crafted for ease of use and longevity.

Product Information

Standard Information

• Brand: Blackburn
• Product Type: Electrical Connector

Technical Specifications

• Model Number: 4H
• Conductor Size: 8 to 4 AWG
• Material: Bronze Alloy
• Bolt Size: 17/32 x 1-1/16 inches
• Weight: 0.0695 lb
• Standards: UL486C, UL467
• Split Size: 0.235 inches
• Hex Nut Size: 23/32 inches
