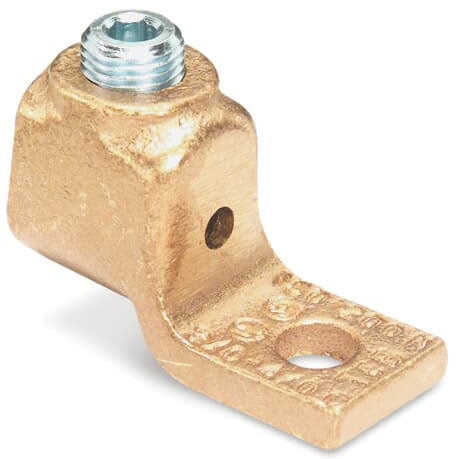

Blackburn 31009 Mechanical Cable Lug 1-2/0 1Bolt Cop Lug

Product Description

The Blackburn 31009 Mechanical Cable Lug is designed for easy installation and reliable performance. This cable lug is compatible with conductors ranging from 1 AWG to 2/0 AWG. It ensures low resistance contact and is suitable for various electrical applications.

• Easily installed with key wrench
• Saddle and cable socket ensure a direct, low resistance contact
• Convenient peephole allows for easy inspection

Product Highlights

The Blackburn 31009 Mechanical Cable Lug provides a robust and durable solution for connecting conductors in electrical systems.

Product Information

Standard Information

• Manufacturer: Blackburn
• UPC: 786210310091

Technical Specifications

• Approval: UL, CSA
• Conductor Material: Copper
• Maximum Conductor Size: 2/0 AWG
• Minimum Conductor Size: 1 AWG
• Number Of Conductors: 1
• Number Of Pad Holes: 1
• Pad Size: 1 Inch L x 13/16 Inch W x 1/4 Inch Thk
• Pad Type: Straight
• Screw Type: Hex Socket
• Stud Size: 3/8 Inch
• Type: Standard Saddle
