Black & Decker 7404SD1-PWR Power-Stud+ Steel Body and Exp Clip 1/4x3-1/4 100 BX

Product Description

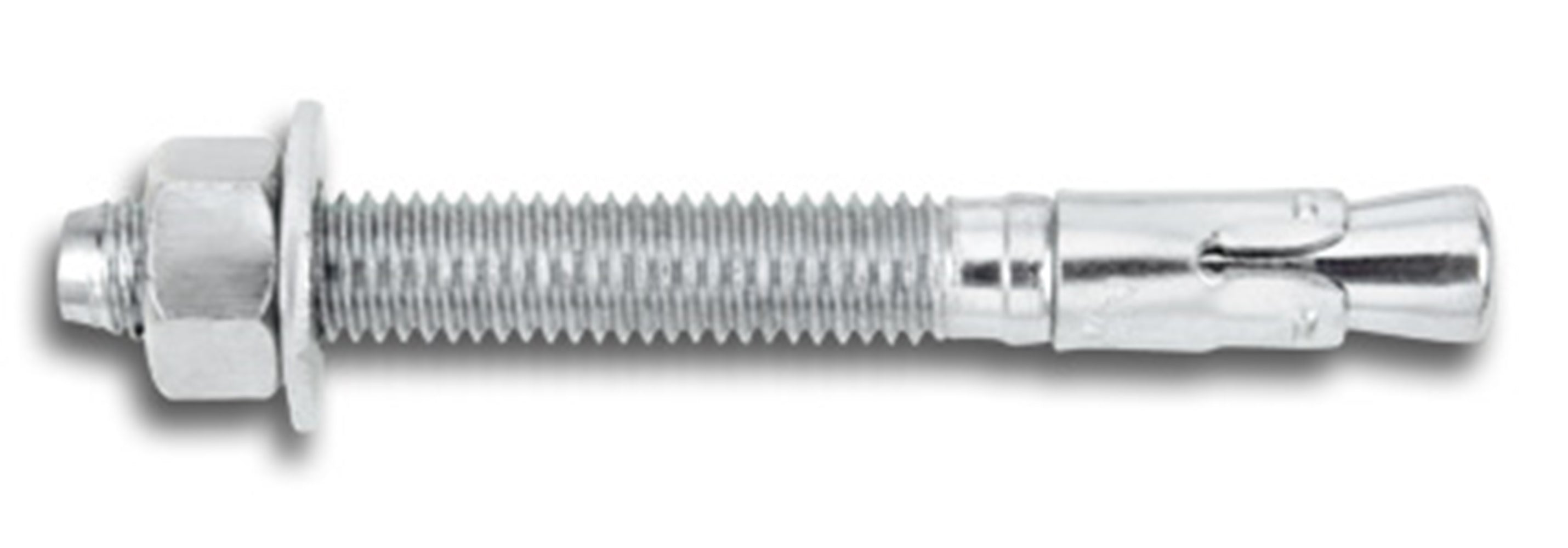

The BLACK & DECKER 7404SD1-PWR Power-Stud+ SD1 Wedge Expansion Anchor is a 1/4 inch x 3-1/4 inch carbon steel fastener designed for consistent performance in high and low strength concrete. This fully threaded, torque-controlled wedge expansion anchor is suitable for normal-weight concrete, structural lightweight concrete, and concrete over metal deck applications. It features a zinc-plated finish for durability.

• Consistent performance in high and low strength concrete.
• Nominal drill bit size matches the anchor diameter.
• Can be installed through standard fixture holes.

Product Highlights

This carbon steel wedge expansion anchor provides consistent performance in concrete, featuring a fully threaded design and follow-up expansion capability.

Product Information

Standard Information

• Brand: BLACK & DECKER
• Manufacturer Part Number: 7404SD1-PWR
• Country of Origin: China

Technical Specifications

• Anchor Type: Wedge
• Recommended Use: Concrete
• Material: Carbon Steel
• Finish: Zinc Plated
• Manufacturer: Stanley Black & Decker
• Connection Design: Concrete & Masonry
• Country of Origin: China
• Design Type: Hex
• Fastener Length: 3.25 inches
• Head Style: Hex Nut
• Product Type: Wedge Bolt
• Thread Type: UNC (Coarse)
• Style: Power-Stud SD1
• Trade Name: Power-Stud+
• Size: 1/4 inch x 3-1/4 inch
• Seismic Approved: No
• Thread Length: 2-1/4 inch
• ICC Approved For Cracked Concrete: No
• ICC Approved For Uncracked Concrete: Yes
• Diameter: 1/4 inch
• Minimum Embedment: 1-1/8 inch
• Thread Direction: Right Hand
• Threading: Fully Threaded
