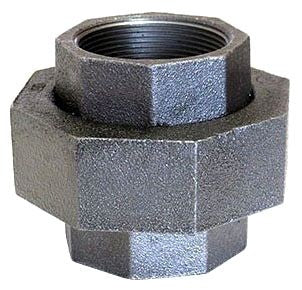

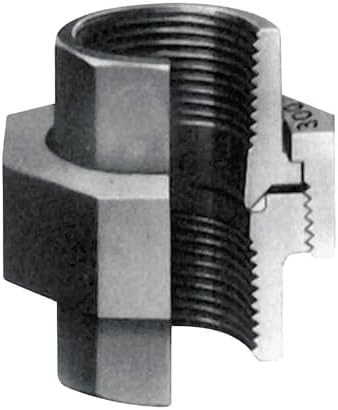

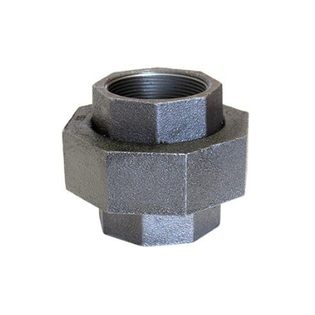

Black 0312822786 Anvil 2 1/2 inches Malleable Union (Class 300 XH)

Product Description

The BLACK 0312822786 Anvil International malleable iron fitting is manufactured and tested to meet strict quality standards. This Class 300 union conforms to ASME B16.3 and B16.39. Suitable for plumbing, industrial, mechanical, HVAC, fire protection, mining, oil, and gas applications. It features a Class 300 FNPT fitting connection with a max pressure of 600 psi@150 Degrees F.

• Malleable iron material
• 2-1/2 inch pipe size
• Female threaded x female threaded end connection

Product Highlights

This malleable iron union is ideal for gas or water systems, providing a dependable connection with a pressure rating of Class 300, 600 PSI non-shock WOG.

Product Information

Standard Information

• Brand: BLACK
• Manufacturer Part Number: 0312822786
• Country of Origin: US

Technical Specifications

• Material: Iron
• Brand: Anvil International
• Connector Type: Union
• Thread Type: NPT
• Manufacturer: ANVIL
• Part Number: 0312822786
• Item model number: 0312822786
• Item Package Quantity: 1
• Measurement System: inch
• Fitting Schedule/Class: Class 300
• Standards: UL Listed, FM Approved, Meets ASME B16.39
• Specific Fitting Shape: Union
• Saturated Steam Pressure: 230 psi @ 550 Degrees F
• Temp. Range: -20 Degrees to 550 Degrees F
• Item: Union
• Pipe Fitting Material: Malleable Iron
• Fitting Connection Type: FNPT
• Max. Pressure: 600 psi@150 Degrees F
• Basic Fitting Material: Metal
• Basic Fitting Shape: Union
• Pipe Size (Fittings): 2-1/2"
• Hex Size: 3-1/4"
• Country of Origin (subject to change): United States
• APPLICATION: PLUMBING, INDUSTRIAL, MECHANICAL, HVAC, FIRE PROTECTION, MINING, OIL, GAS
• TEMPERATURE RATING: 550 DEG F
• MATERIAL SPECIFICATION: ASTM A197
• PRESSURE RATING: CLASS 300, 600 PSI NON-SHOCK WOG
• END CONNECTION: FEMALE THREADED X FEMALE THREADED
• WARRANTY: 1 YEAR
• MODEL: 459
