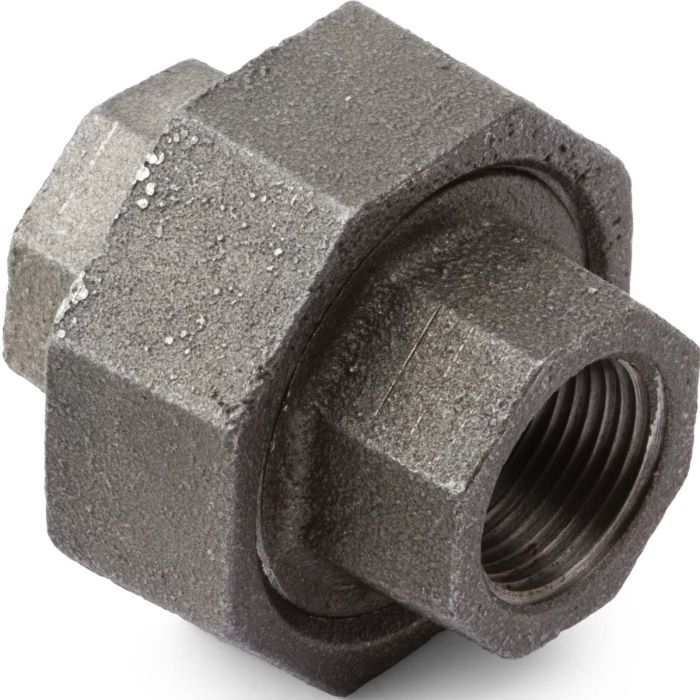

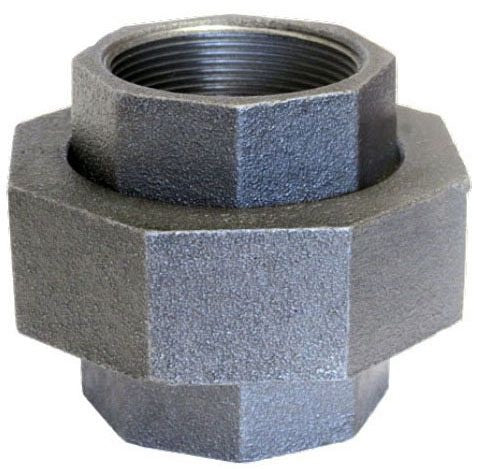

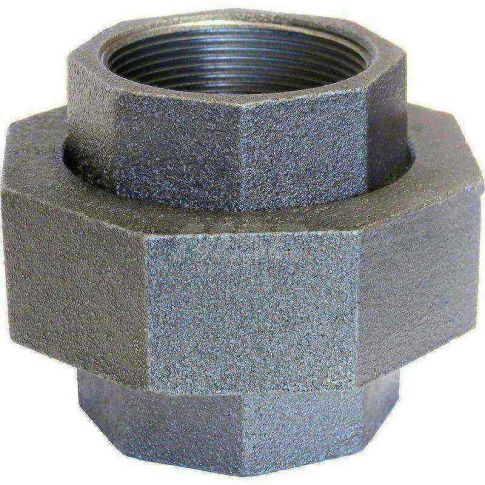

Black 0312822406 Malleable Iron Union

Product Description

The Black 0312822406 is a malleable iron union designed for effective pipe connections. It is used in plumbing and HVAC systems. This fitting has a nominal size of one and one-quarter inches and is part of the FIG 554 series. It features FNPT end connections and is rated for a pressure class of 250 pounds.

• Constructed from durable malleable iron
• Complies with ASME B16.39 standards
• Suitable for various HVAC and plumbing applications

Product Highlights

This union is ideal for creating strong and reliable connections in plumbing systems, ensuring leakage prevention and adherence to safety standards.

Product Information

Standard Information

• Manufacturer Part Number: 0312822406
• Material: Malleable Iron

Technical Specifications

• Fitting Size: 1-1/4 inches
• End Connection Type: FNPT x FNPT
• Pressure Class: 250 lb
• Pressure Rating: 500 psi
• Temperature Rating: -20 to 150 degrees Fahrenheit
• Fitting Type: Union
• Series: FIG 554
• Finish: Black
• Applicable Standards: ASME B16.3, ASME B16.39, UL (Canada and US), FM
• Length: 2-3/4 inches
• Connection Type: Threaded
