Bk W034SS101018 Water Heater Connector 3/4 Fpt 18 in Ss

Product Description

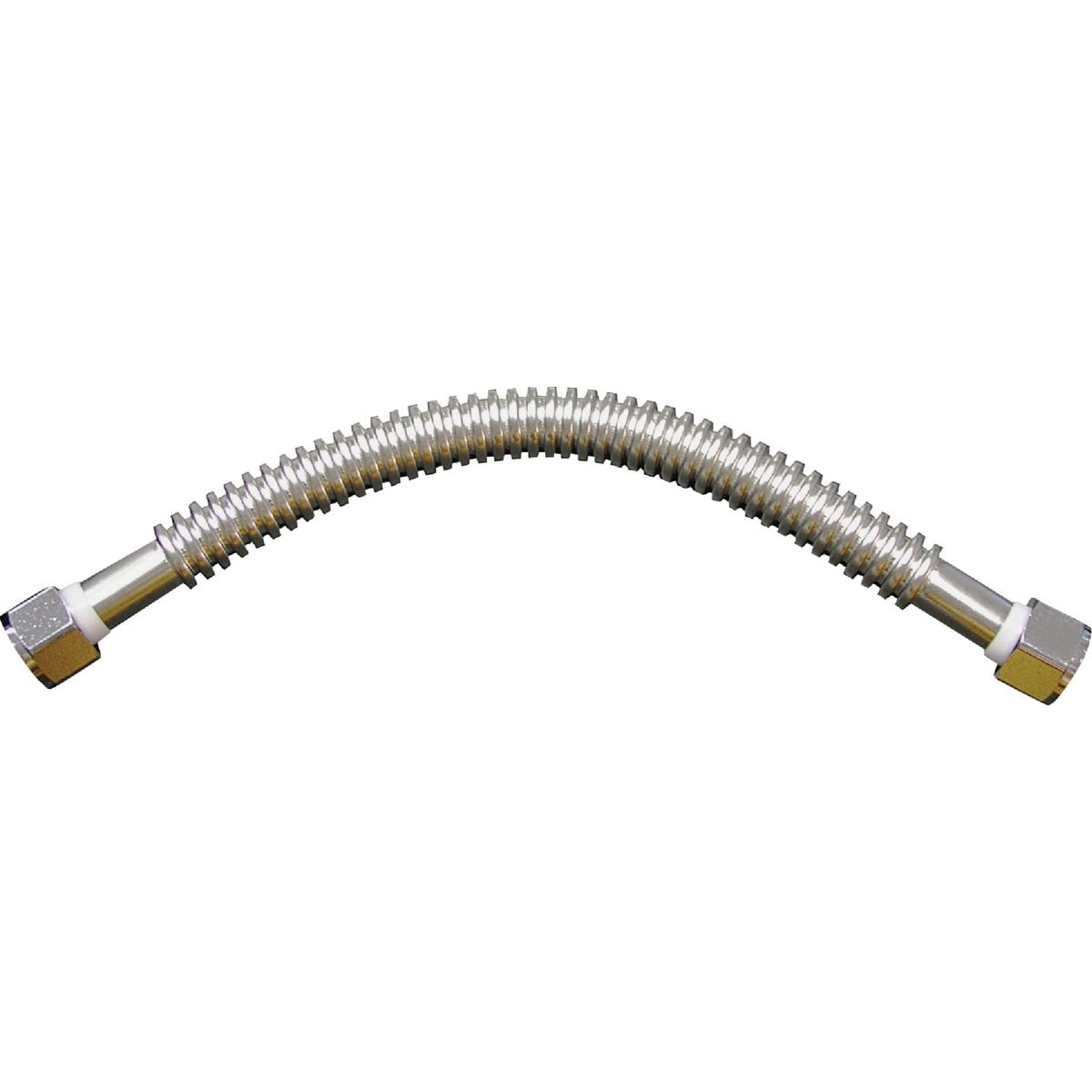

The BK W034SS101018 is a corrugated stainless steel water heater connector designed to link a water heater to the supply line using 3/4-inch female pipe thread (FPT) connections on both ends. Constructed from 304 stainless steel, it measures 18 inches in length and is built to handle a maximum operating temperature of 180 degrees F and a maximum pressure of 125 psi. The corrugated design provides flexibility during installation, making it easier to align mismatched inlet and outlet positions without stressing the connection. Licensed plumbers and HVAC techs installing water heaters in residential, commercial, or industrial settings will find this connector suitable for both hot and cold supply lines.

This connector is approved for use in residential, commercial, and industrial applications for water supply connections to fixtures. The 3/4-inch FPT x 3/4-inch FPT configuration matches standard water heater inlet and outlet port threading. At 18 inches in length, it accommodates typical water heater rough-in spacing and allows for minor offsets between the unit and the supply stub-outs. IAPMO listing confirms the connector meets applicable plumbing and mechanical code requirements for water supply service.

Key Features

• 304 corrugated stainless steel construction for corrosion resistance and flexible alignment
• 3/4-inch FPT x 3/4-inch FPT connections on both ends to match standard water heater ports
• 18-inch length accommodates standard water heater rough-in spacing
• Rated to 180 degrees F maximum temperature for hot water service
• Rated to 125 psi maximum pressure for residential and commercial water supply systems
• IAPMO listed for residential, commercial, and industrial water supply applications

Compatibility

Approved for residential, commercial, and industrial water supply connections to fixtures. Suitable for use with water heaters equipped with standard 3/4-inch FPT inlet and outlet ports.

Installation Notes

Installation should be performed by a licensed plumber in accordance with local plumbing codes and the International Plumbing Code (IPC). Shut off the water supply and fully drain the line before disconnecting or connecting any fittings. Apply thread sealant tape or compound rated for potable water to all FPT connections before hand-tightening and wrench-finishing. Do not over-bend or kink the corrugated body during installation, as this can compromise the connector's pressure rating and service life.

Technical Specifications

• Material: 304 Stainless Steel
• Connection Type: 3/4 inch FPT x 3/4 inch FPT
• Length: 18 inches
• Maximum Temperature: 180 degrees F
• Maximum Pressure: 125 psi
• Certification: IAPMO Listed
• Weight: 0.398 pounds
• Sold As: Each

Standard Information

• Brand: BK
• Manufacturer Part Number: W034SS101018
